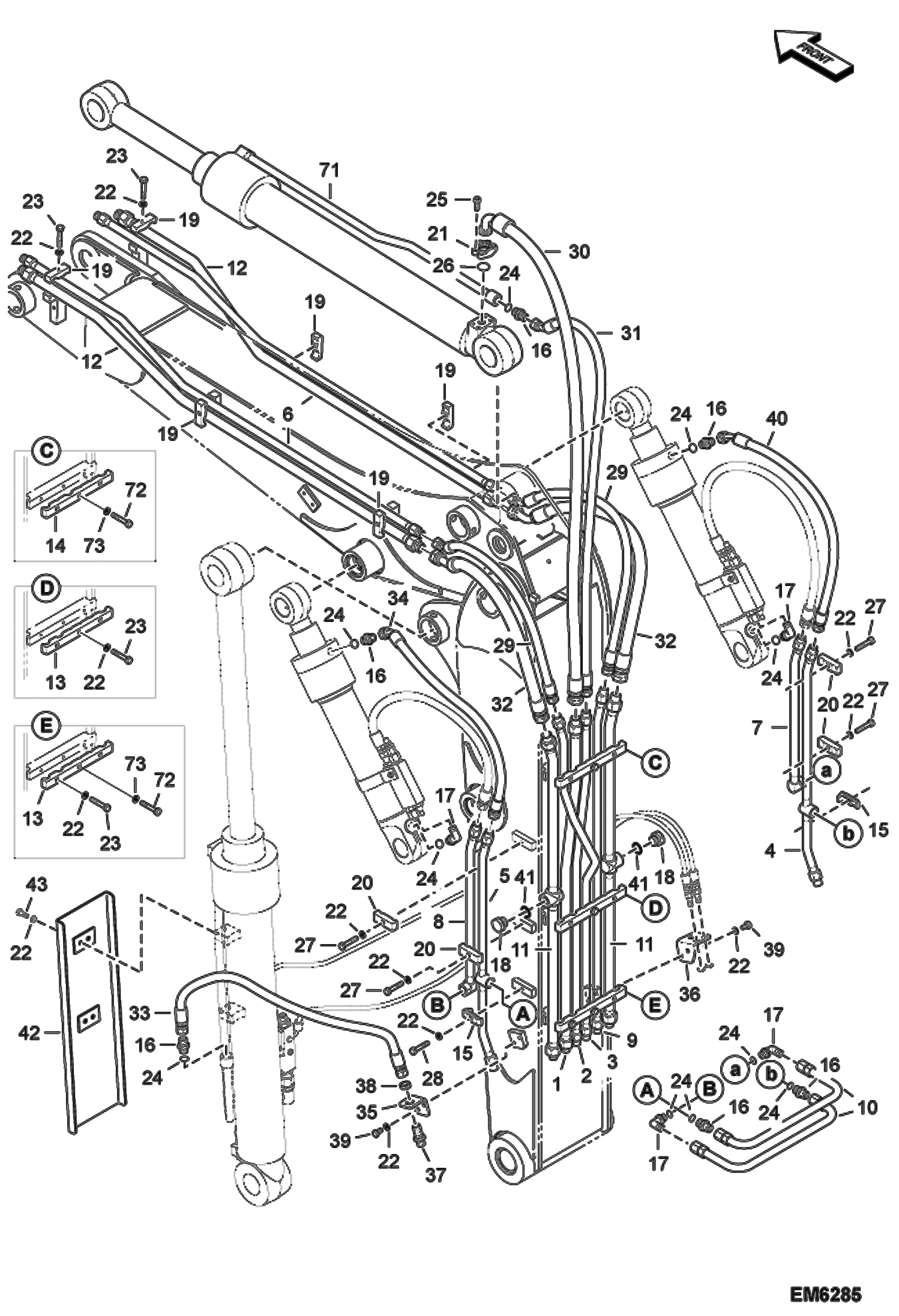

Запчасти Bobcat E80 ARTICULATED BOOM HYDRAULICS (General Piping) (Arm Cylinder W/O Lock Valve) (EMEA) ACCESSORIES & OPTIONS

1

7017286

PIPE

2

7017287

PIPE

3

7017288

PIPE

4

7017289

PIPE

5

7017290

PIPE

6

7017291

PIPE

7

7017292

PIPE

8

7017309

PIPE

9

7017293

PIPE

10

7017294

PIPE

11

7017295

PIPE

12

7017296

PIPE

13

7017297

CLAMP,PIPE

14

7017298

CLAMP,PIPE

15

7017299

CLAMP,PIPE

16

7004699

ADAPTER

17

7004710

ELBOW

18

7004733

PLUG

19

7006037

CLAMP

20

7017300

CLAMP,PIPE

21

7004777

FLANGE

22

7007835

WASHER SPRING

22

7007835

WASHER SPRING

23

7007674

BOLT

24

7007911

O-RING

25

7007748

BOLT SOCKET M10X1.5X30

26

7004631

O-RING

27

7007673

BOLT

28

7007671

BOLT

29

7015642

HOSE

30

7017301

HOSE (ST-90)

31

7017302

HOSE (ST-45)

32

7015643

HOSE

33

7017303

HOSE (ST-ST)

34

7015644

HOSE

35

7005925

BRACKET LH

36

7006753

BRACKET RH

37

7003950

ADAPTER

38

7003876

NUT

39

7007626

BOLT

40

7015645

HOSE

41

7007916

O-RING

42

7022845

COVER, CYL

43

7007630

BOLT

71

7012247

CYLINDER;ARM See Illustration ARTICULATED BOOM/ EM7179

72

7007674

BOLT

73

7007835

WASHER SPRING
