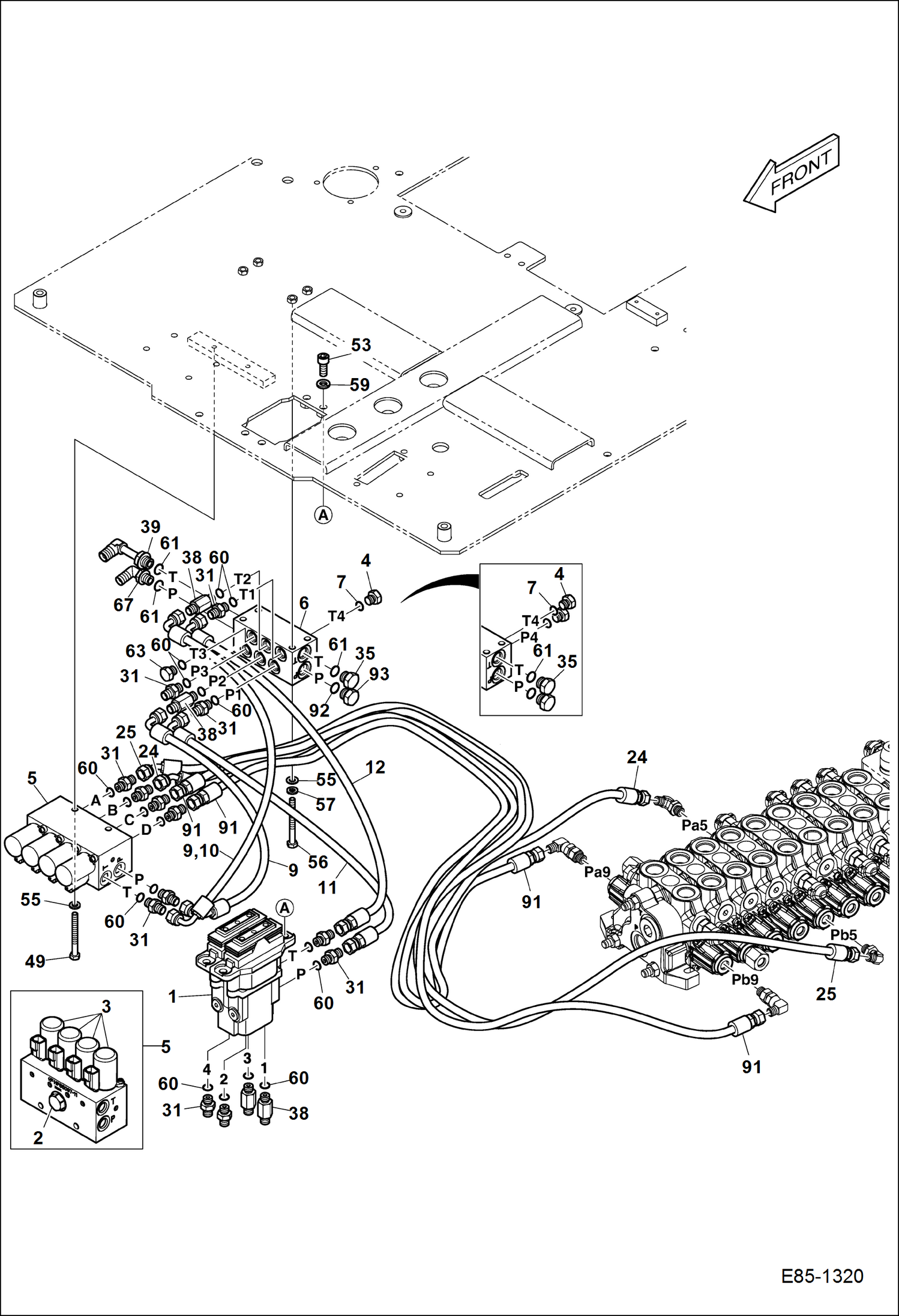

Запчасти Bobcat E85 HYDRAULIC CIRCUITRY (Travel & Pedal Valves) HYDRAULIC SYSTEM

1

7028854

VALVE, PEDAL

2

7028873

SCREEN

3

7028845

COVER, BOOM CYL

4

7004732

PLUG

5

7028846

VALVE, MANIFOLD W/Ref. 2,3

6

7028697

BLOCK, PORT

7

7007906

O-RING

9

7029102

HOSE, HYD

10

7029102

HOSE, HYD

11

7005413

HOSE PF1/4-340L

12

7005361

HOSE PF1/4-310L

24

7029105

HOSE, HYD

25

7018658

HOSE, HYD

31

7004683

ADAPTER

35

7004734

PLUG

38

7004702

ADAPTER

39

7029002

FITTING, ELBOW

49

7007665

BOLT

53

7007747

BOLT HEXSOCKET M10X25

55

7007834

WASHER SPRING

56

7007667

BOLT

57

7007816

WASHER

59

7007835

WASHER SPRING

60

7007906

O-RING

61

7007909

O-RING

63

7004732

PLUG

67

7004716

ELBOW

91

7029107

HOSE, HYD

92

7029107

HOSE, HYD
