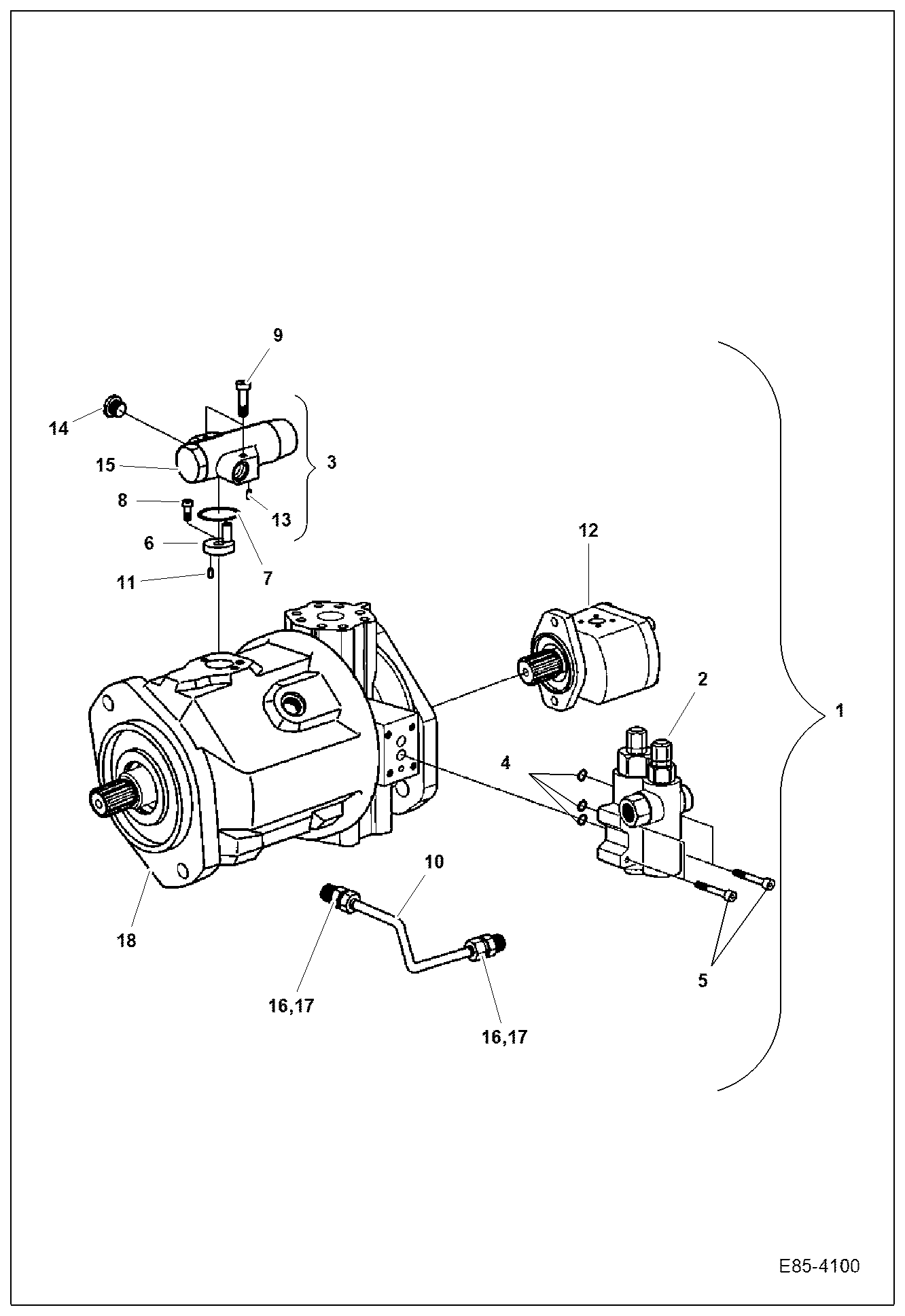

Запчасти Bobcat E85 HYDRAULIC PUMP (Gear Pump & Pilot Valve) HYDRAULIC SYSTEM

1

7004963

PUMP ASSY

2

7007374

VALVE PILOT W/Ref. 4,5

3

7007373

VALVE PILOT W/Ref. 6,7,8,9,11,13,15

4

7004654

O-RING

5

7007727

SCREW SOCKET

6

7007349

CARRIER LR

7

7004649

ORING

8

7007721

SCREW SOCKET

9

7007725

SCREW SOCKET

10

7007364

TUBELINE ASSY W/Ref. 16,17

11

7007855

PIN SELF LOCKING

12

7007375

PUMP, GEAR

13

7007857

PIN SELF LOCKING

14

7006848

PLUG

15

7007346

CAP INSULATION

16

7007361

FITTING GREASE

17

7007362

RING SPACER

18

UNIT;BASE NLA - Order Ref.1
