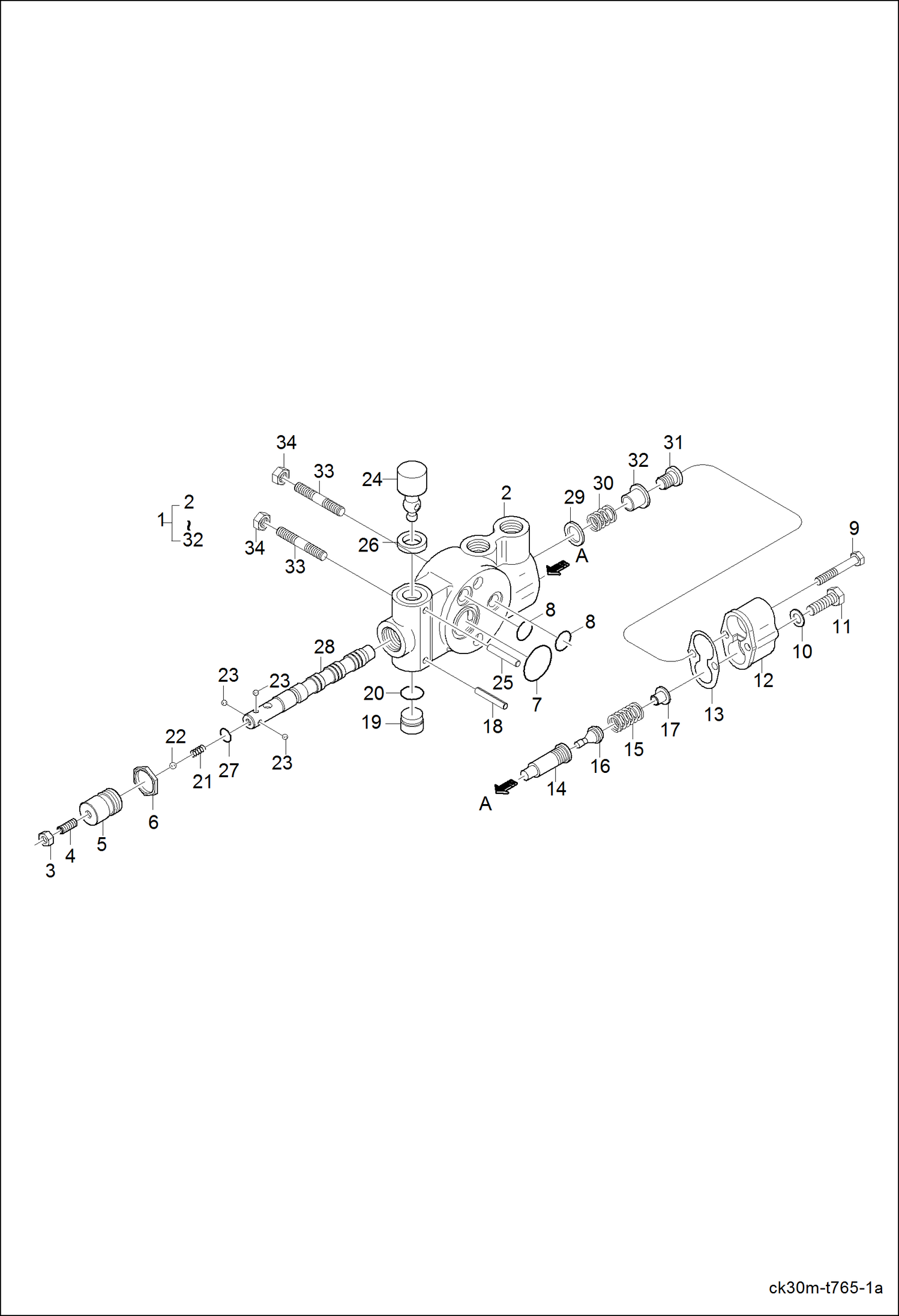

Запчасти Bobcat CT225 CONTROL VALVE (Rear Auxiliary) ACCESSORIES & OPTIONS

1

6697824

VALVE, CONTROL detented - Was 6698189 - A

2

6697834

BODY

3

6697840

NUT

4

6697836

SCREW

5

6697854

COVER

6

6697841

NUT

7

6697847

ORING

8

6697846

ORING

9

6697839

SCREW

10

6697843

SEAL

11

6697837

SCREW

12

6697829

COVER

13

6697849

GASKET

14

6697833

SEAT

15

6694365

SPRING

16

6697830

VALVE

17

6697831

SEAT

18

6697851

PIN

19

6697855

PLUG

20

6694375

O-RING

21

6697845

SPRING

22

6697857

BALL

23

6697856

BALL

24

6697835

SWIVEL

25

6697858

PIN

26

6697850

GASKET

27

6697848

ORING

28

6697832

SPOOL

29

6697842

PIN

30

6697844

SPRING

31

6697838

SCREW

32

6697853

SPACER

33

6697680

STUD M10*73MM

34

6697461

NUT, LOCK
