MOWER (Drive Shaft) (3FM60 A1FR) (3FM72 A1FS)

Запчасти Bobcat 3 POINT ATTACHMENTS MOWER (Drive Shaft) (3FM60 A1FR) (3FM72 A1FS) Loader

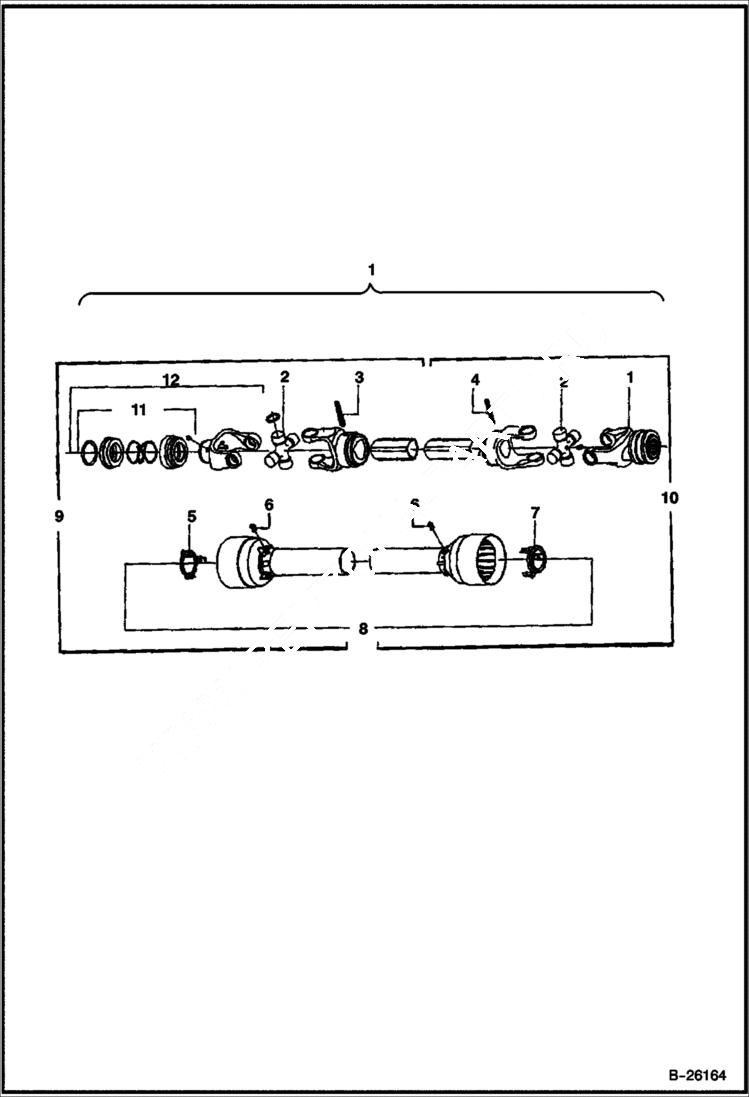

Схема запчастей Bobcat 3 POINT ATTACHMENTS - MOWER (Drive Shaft) (3FM60 A1FR) (3FM72 A1FS) Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6689823

DRIVE SHAFT Ref. 2-12

2

6689850

KIT cross & bearing

3

00759169

ROLL PIN

4

00759165

ROLL PIN

5

6689852

COLLAR

6

00754330

BOLT nylon

7

6689853

COLLAR

8

6689824

SHIELD complete

9

SHAFT ASSY NLA - outer half - Includes shield - Order Ref. 1 - Was 6689825 - A

10

6689826

SHAFT ASSY inner half - includes shield

11

6689854

KIT slide collar repair

12

6689875

YOKE ASSY
