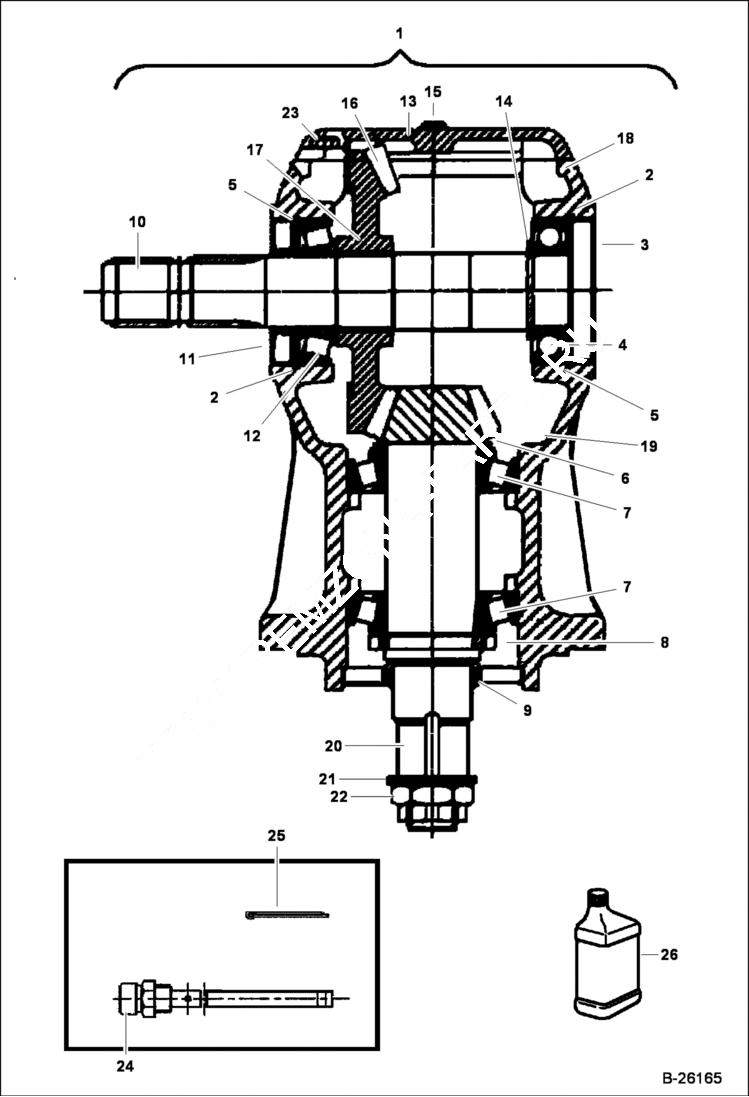

Запчасти Bobcat 3 POINT ATTACHMENTS MOWER (Gearbox) (3FM60 A1FR) (3FM72 A1FS) Loader

1

6689827

GEARBOX ASSY W/Ref. 2 - 26

2

6689876

SNAP RING

3

6689877

CAP PLUG

4

6689863

BEARING

5

6689878

SHIM

6

6689879

SHIM KIT

7

6689880

BEARING

8

6689881

LOCKNUT

9

6689882

SEAL output

10

6689883

SHAFT input

11

6689884

SEAL input shaft

12

6689885

BEARING

13

6689829

COVER gearbox

14

6689886

SHIM

15

00755633

PLUG

16

6689887

SNAP RING

17

6689888

GEAR crown

18

6689828

HOUSING

19

6689890

SHIM

20

6689891

SHAFT pinion

21

00778246

WASHER external tooth

22

4840

NUT castle

23

00771856

BOLT metric

24

00778187

PLUG

25

70497

COTTER PIN

26

7000978

GREASE gearbox - quart
