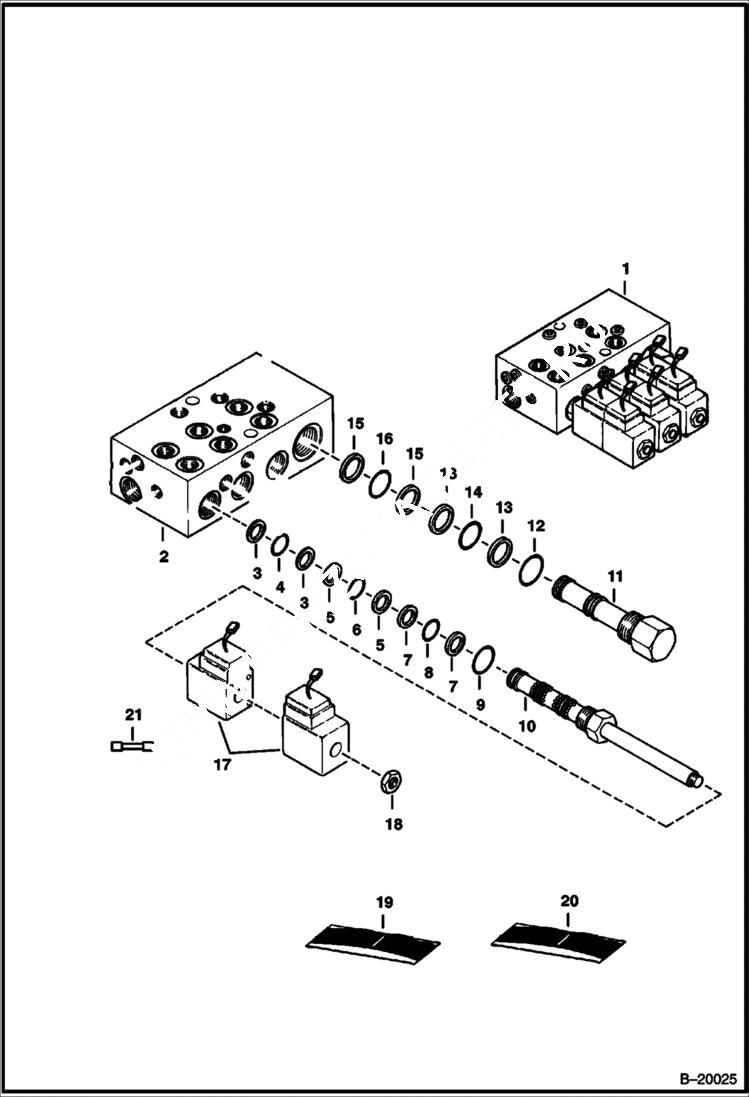

Запчасти Bobcat 3 POINT HITCH 3 POINT HITCH (Hydraulic Circuitry) (H702 6650) Loader

1

VALVE NLA - Order 6661385 & 6661363

2

6661442

VALVE BODY

3

BACK-UP RING NSS

4

O-RING NSS

5

BACK-UP RING NSS

6

O-RING NSS

7

BACK-UP RING NSS

8

O-RING NSS

9

O-RING NSS

10

6661443

VALVE W/Ref. 3, 4, 5, 6, 7, 8, 9, 10, 17, 18 W/weather pack connectors

11

6661385

VALVE NLA - Flow - Was 6661445 - A

12

O-RING NSS

13

BACK-UP RING NSS

14

O-RING NSS

15

BACK-UP RING NSS

16

O-RING NSS

17

6661447

SOLENOID W/weather pack connectors

18

NUT NSS

19

6661448

SEAL KIT W/Ref. 3, 4, 5, 6, 7, 8 & 9

20

6659993

O-RING W/Ref. 12, 13, 14, 15 & 16 - Was 6661449 - A

21

6661586

WIRE JUMPER Was 6661363 - A
