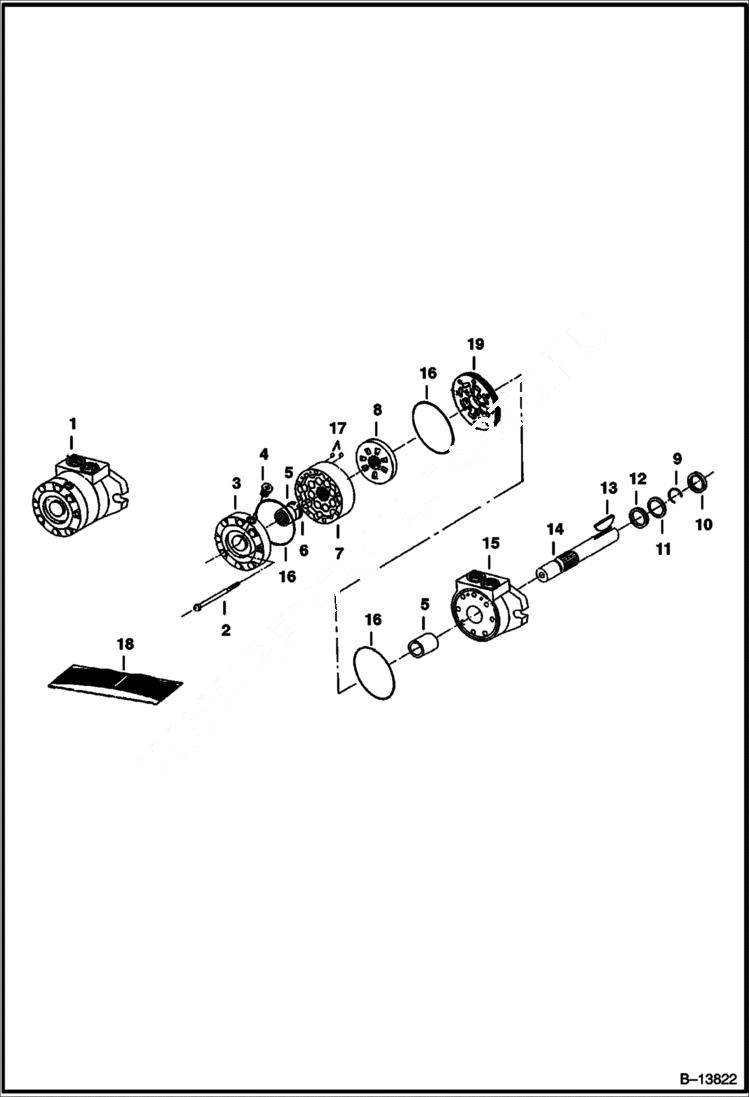

Запчасти Bobcat ANGLE BROOM INDUSTRIAL BROOM (Motor) Loader

1

MOTOR See BTI294 NLA - Model 110A-129-ASO - Ref. 2-17 & 19 - Was 6661399 - A

2

6661394

BOLT

3

6655748

COVER W/Ref. 5

4

6655742

VENT PLUG

5

BEARING NSS - W/Ref. 3 & 15

6

6661392

SNAP RING

7

6655739

GEROLER

8

6655737

VALVE PLATE

9

6661393

SNAP RING

10

6661389

SEAL

11

6661390

BACKUP RING

12

6661391

SEAL

13

6659532

WOODRUFF KEY

14

6661395

SHAFT

15

6661397

HOUSING W/Ref. 5

16

6655741

SEAL

17

BALLS NLA - Was 6655738 - A

18

6661398

SEAL KIT Ref. 10 - 12 & 16

19

6661396

COMMULATOR plate
