GRADER BROOM (Shrouding)

Запчасти Bobcat ANGLE BROOM GRADER BROOM (Shrouding) Loader

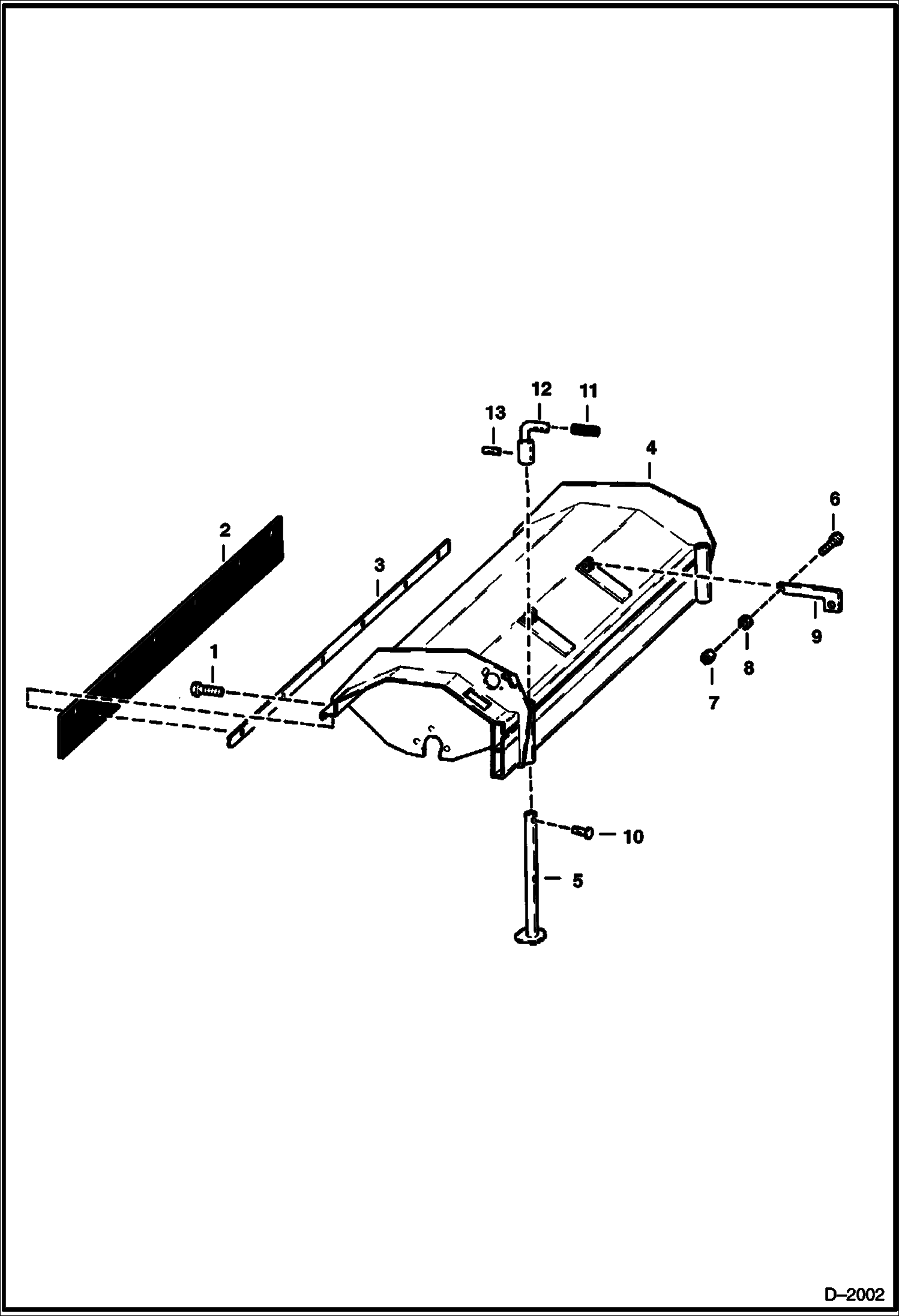

Схема запчастей Bobcat ANGLE BROOM - GRADER BROOM (Shrouding) Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

17C516

BOLT

2

FLAP NLA - Was 6655714 - A

3

6655715

BACKING PLATE

4

SHROUD NLA - Was 6655717 - A

5

6657344

STAND Was 6655720 - A

6

17C624

BOLT 5

7

62D6

NUT 5

8

23E6

WASHER lock

9

6655718

LINK

10

6655719

PIN

11

6657337

HANDLE

12

6714197

HANDLE, CRANKING Was 6657338 - A

13

14J2524

ROLL PIN
