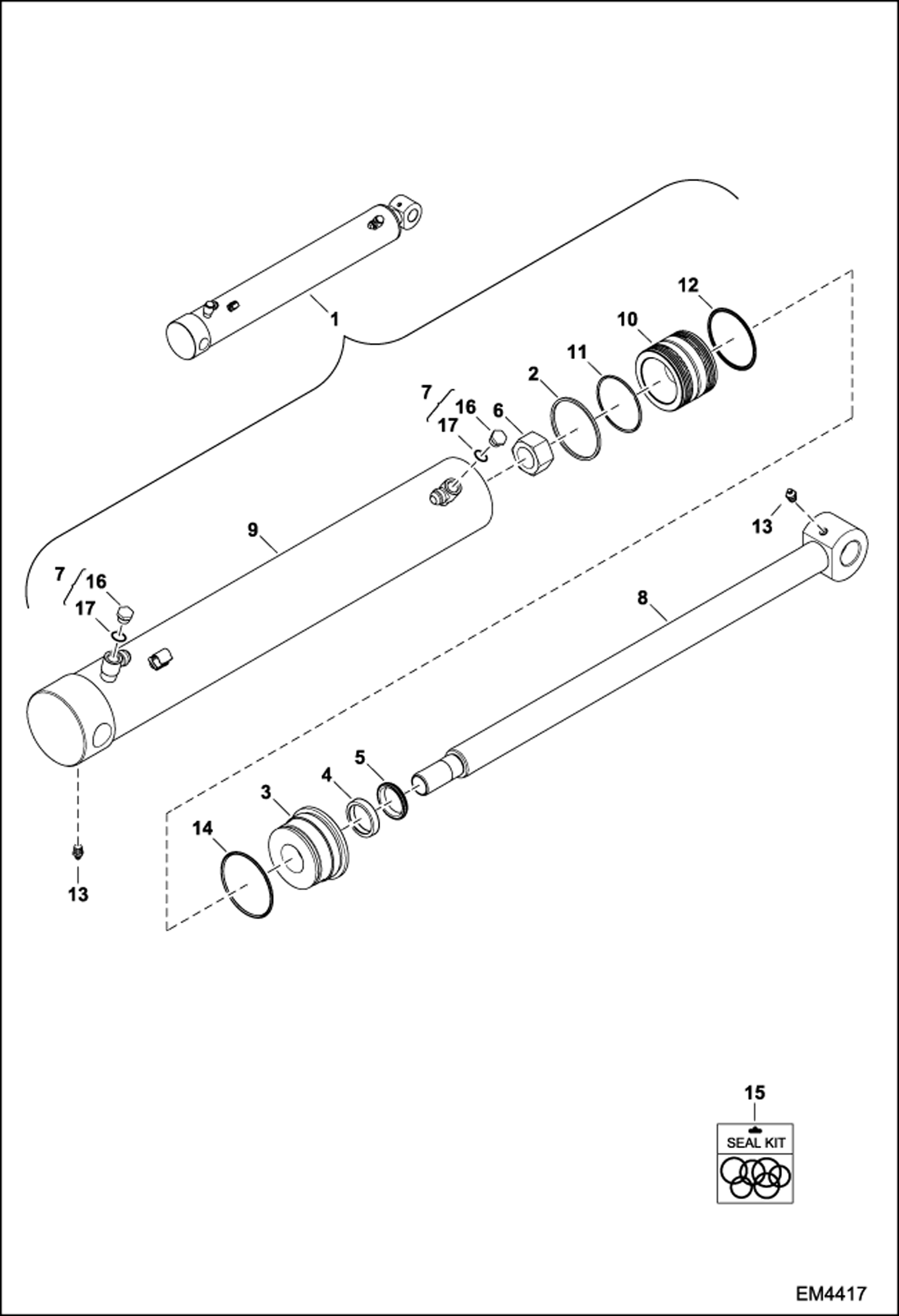

Запчасти Bobcat BACKHOE BOOM CYLINDER (A2HH) BACKHOE

1

7104122

CYLINDER, BOOM W/Ref. 2-14, 16, 17

2

6513466

PISTON RG

3

6539185

HEAD, CYL TILT

4

6667326

SEAL

5

6690707

WIPER, ROD CYL - A

6

6810539

NUT

7

6812171

PLUG W/Ref. 16, 17

8

7104123

SHAFT

9

7104126

TUBE W/Ref. 7, 14, 16, 17

10

7104125

PISTON

11

54K30226

O-RING

12

58K234

O RING 10 Was 54K40300 - A

13

73K234

BACK-UP RING

14

82K236

O-RING

15

6587864

SEAL KIT W/Ref. 2, 4-6, 11, 13, 14 - A

16

PLUG, HYD TUBE NLA - Order Ref. 7

17

75K6

O-RING

18

10H25

FITTING, GREASE 5
