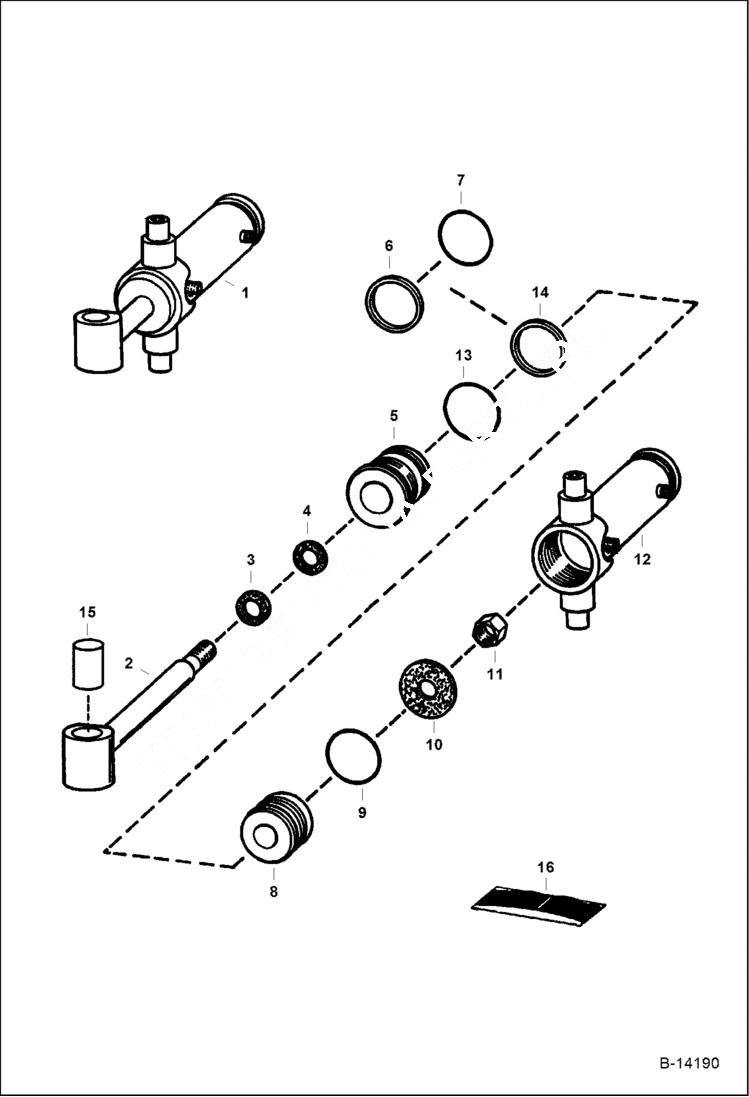

Запчасти Bobcat BACKHOE CYLINDER SWING (401500101 & Above) (232900101 & Above) 725S BACKHOE

1

6802067

CYLINDER W/Ref. 2-13, 15

2

6802923

ROD W/ Ref. 15 - Was 6801646 - D

3

6665208

SEAL Wiper

4

6665184

SEAL

5

6538582

HEAD Was 6628031 - B

6

73K228

BACK-UP RING Back-Up - Was 80K000228B - A

7

25K40208

O RING 10

8

6538590

PISTON

9

25K30202

O RING 10

10

1522534

SEAL

11

92D12

NUT

12

6802189

CASE

13

82K230

O-RING Was 58K230 - A

14

7008778

SEAL, QUAD

15

618453

BUSHING

16

6589869

SEAL KIT W/Ref. 3, 4, 9, 10, 11, 13, & 14
