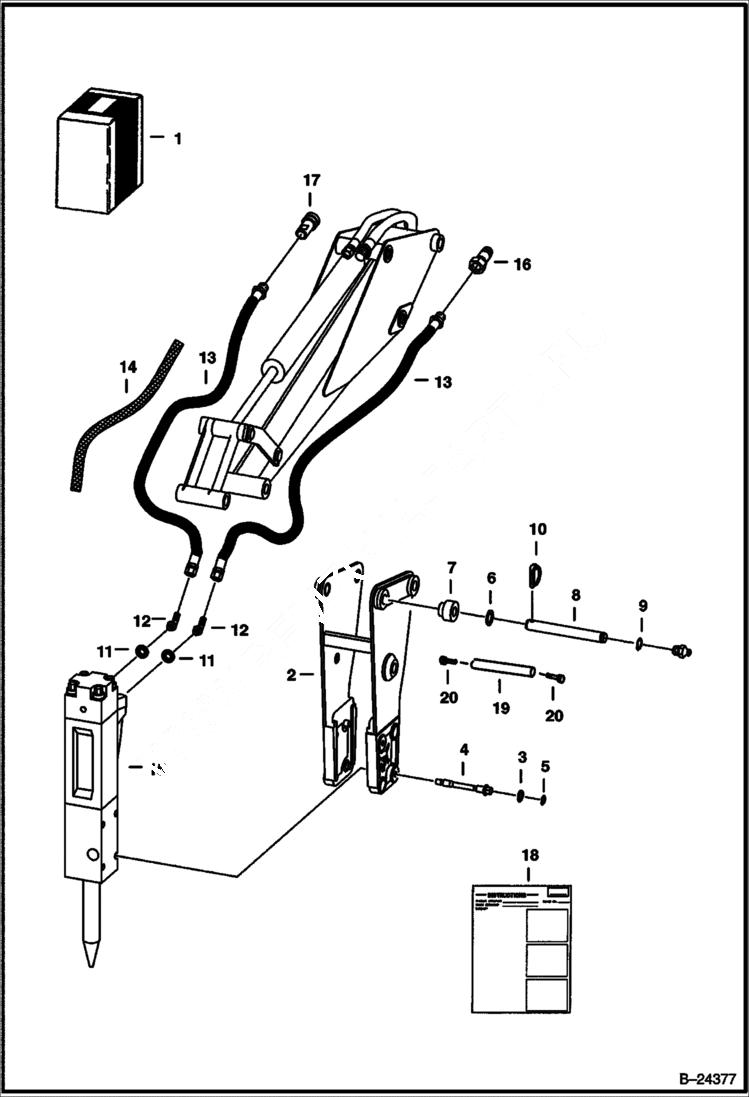

Запчасти Bobcat BACKHOE BREAKER MOUNTING KIT 2560, 3560, 2570, & 3570 Breaker - 730SH 730SH BACKHOE

1

KIT SALES - W/Ref. 6 - 14, 16 - 18 - Sales # 6711715

2

6705592

FRAME

3

6728010

WASHER Locking - Was 6662308 - A

4

6662307

BOLT

5

6662309

SNAP RING

6

6584872

WASHER

7

6705536

BUSHING

8

6705593

PIN

9

22J24

RING SNAP Was 6538285 - B

10

6560382

PIN, LOCK Locking

11

79K12

O RING 10

12

18K8

FTG

13

6714881

HOSE

14

6656155

HOSE COVER bulk - sold per foot

15

BREAKER See Attachments

16

6674688

COUPLER, FF MALE straight - Was 6667808 - A

16

6679841

SEAL Was 6672026 - A

17

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

18

6722592

INSTRUCTION

19

6715741

BAR support

20

31C832

BOLT
