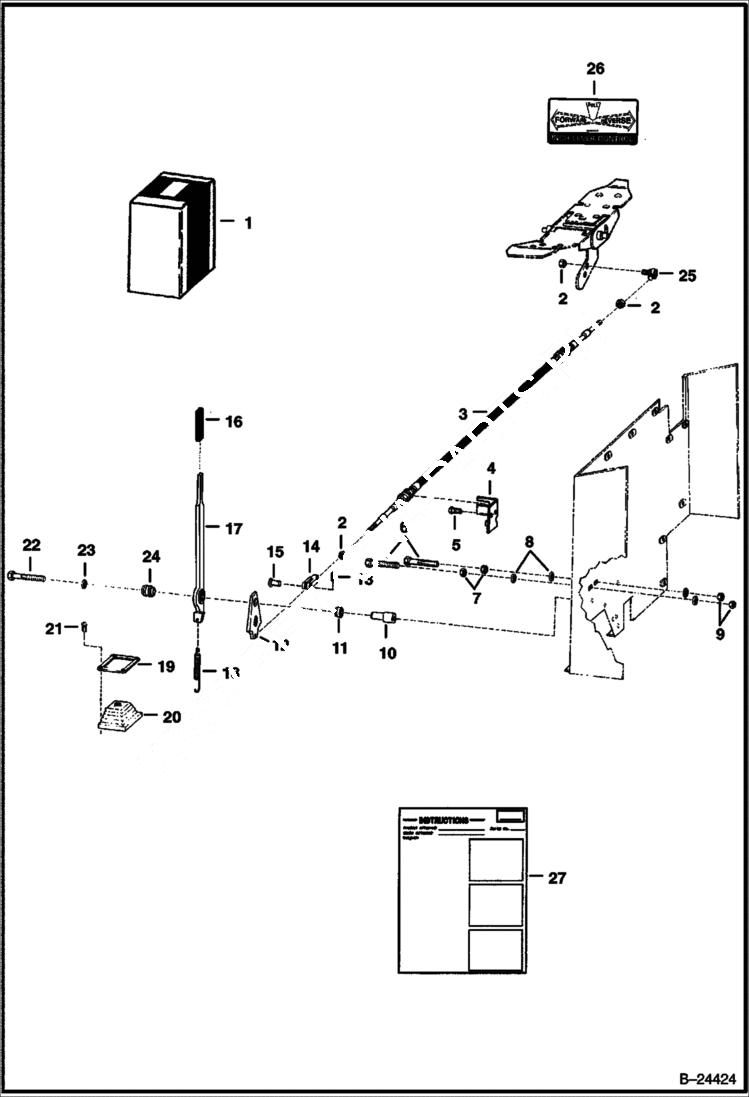

Запчасти Bobcat BACKHOE CREEP LEVER KIT 937S 937S BACKHOE

1

KIT NLA - Order compontents - Was 6532171 - A

2

62D4

NUT

3

6646490

CABLE

4

6586194

BRACKET

5

17C510

BOLT

6

17C652

BOLT

7

61D6

NUT 5

8

6530548

WASHER Was 25E000017B - A

9

85D6

NUT, 5

10

6586193

SHAFT

11

6643375

BUSHING

12

6586192

LINK

13

1F208

PIN

14

2J4200

CLEVIS

15

4F4051

PIN

16

6586195

GRIP

17

6586188

LEVER

18

6610077

SPRING

19

6583697

RING

20

BOOT NLA - Was 6583699 - A

21

24G1012

BOLT

22

17C552

BOLT

23

25E16

WSHR

24

6646493

BEARING

25

6631036

JOINT

26

6583844

DECAL

27

6570781

INSTRUCTIONS Mounting
