BACKHOE (Boom Group) (M06)

Запчасти Bobcat BACKHOE BACKHOE (Boom Group) (M06) M06 BACKHOE

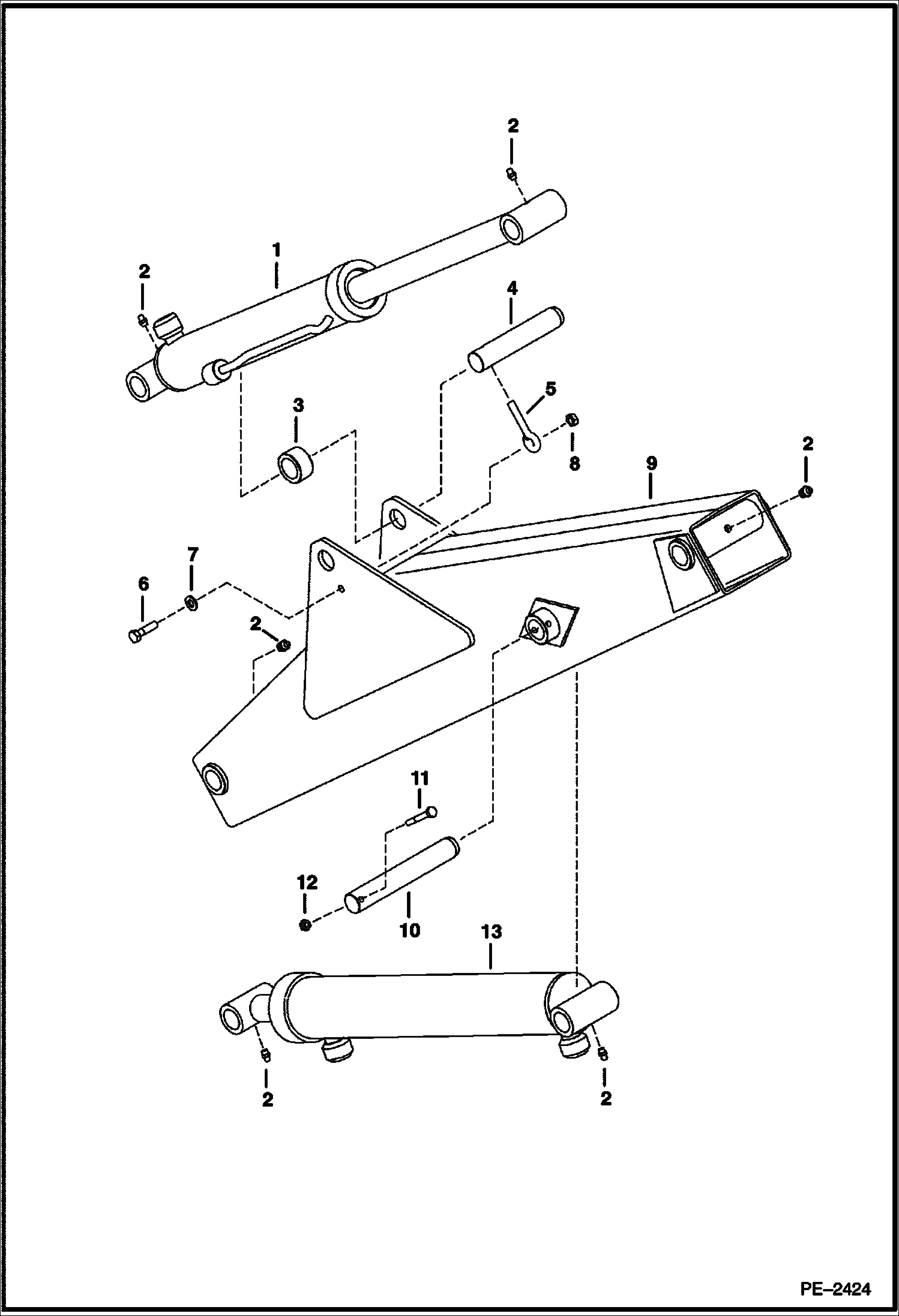

Схема запчастей Bobcat BACKHOE - BACKHOE (Boom Group) (M06) M06 BACKHOE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CYLINDER See Illustration BACKHOE/ B24737 dipper

2

10H35

FITTING, GREASE 10

3

6594096

SPACER

4

6554894

PIN

5

6554414

PIN

6

17C520

BOLT 5

7

25E15

WASHER

8

85D5

NUT 5

9

6554891

BOOM

10

6554893

PIN

11

17C432

BOLT

12

85D4

NUT 5

13

CYLINDER See Illustration BACKHOE/ B24735 boom
