BACKHOE (Swing Cylinder) (406 6310 & Above) (506 6311 & Above)

Запчасти Bobcat BACKHOE BACKHOE (Swing Cylinder) (406 6310 & Above) (506 6311 & Above) 406/506 BACKHOE

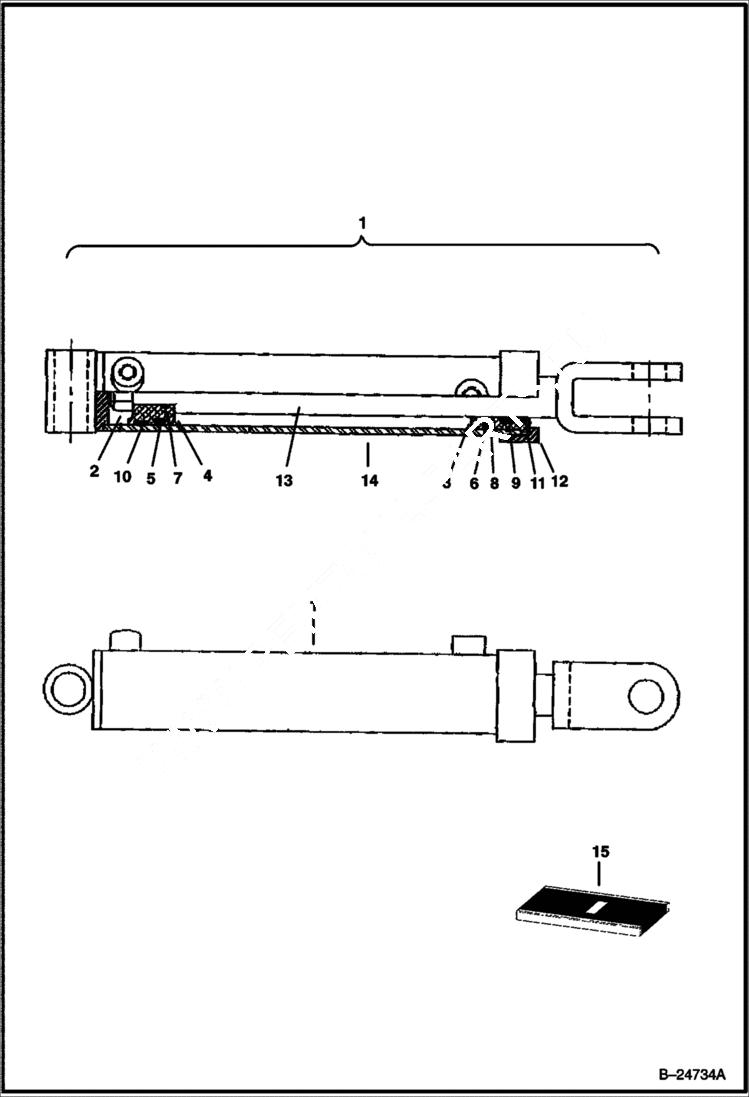

Схема запчастей Bobcat BACKHOE - BACKHOE (Swing Cylinder) (406 6310 & Above) (506 6311 & Above) 406/506 BACKHOE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6686069

CYLINDER ASSY Ref. 2-14 - Columbus Hydraulics

2

6673617

NUT Was 6684456 - A

3

6687025

HEAD

4

6687026

PISTON

5

SEAL NSS - Order Ref. 15

6

O-RING NSS - Order Ref. 15

7

O-RING NSS - Order Ref. 15

8

BACKUP RING NSS - Order Ref. 15

9

SEAL NSS - Order Ref. 15

10

WEAR RING NSS - Order Ref. 15

11

DUST SEAL NSS - Order Ref. 15

12

6687027

COLLAR

13

6687028

SHAFT

14

6687029

BARREL

15

6687030

SEAL KIT Ref. 5-11
