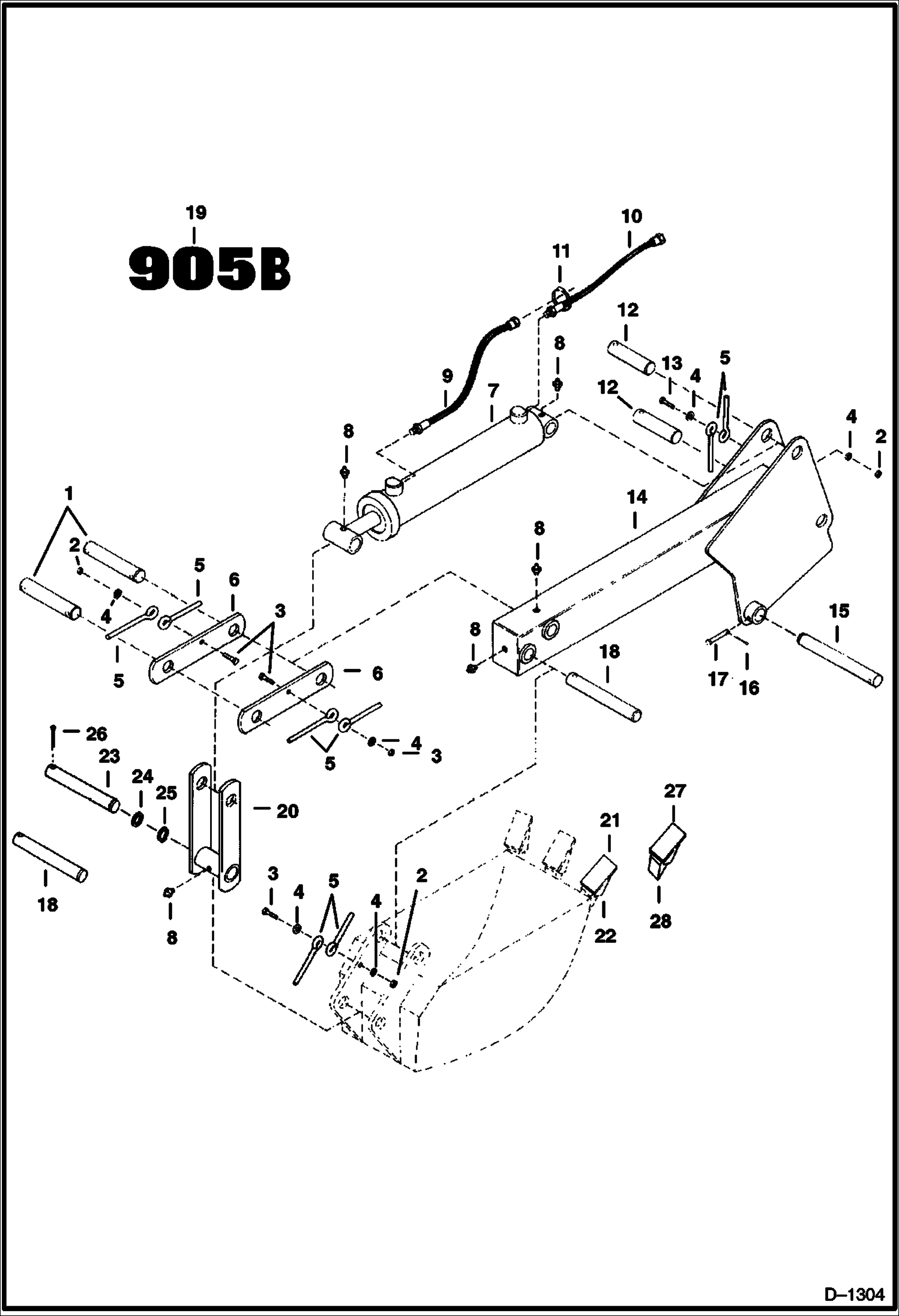

Запчасти Bobcat BACKHOE BACKHOE (Dipperstick Assembly) (905) (905A) (905B) 905 BACKHOE

1

6554906

PIN

2

85D5

NUT 5

3

17C512

BOLT 5

4

25E15

WASHER

5

6554414

PIN retainer

6

6554908

BAR slide

7

6554904

CYLINDER See Illustration BACKHOE/ C2280D bucket

8

10H35

FITTING, GREASE 10

9

6530885

HOSE Was 6554389 - A

10

6530886

HOSE Was 6554390 - A

11

42H10

HOSECLAM5

12

6554902

PIN

13

17C516

BOLT

14

6554901

DIPPERSTICK

15

6594094

CLEVIS PIN Was 6554412 - A

16

1F308

PIN, COTTER

17

6594094

CLEVIS PIN

18

PIN NLA - Order Ref. 23-26 - Was 6554905 - A

19

6593411

DECAL

20

6554909

LINKAGE

21

6509290

TOOTH

22

6509291

SHANK & TOOTH W/tooth

23

6539085

PIN

24

25E31

WASHER

25

22J16

SNAP RING Was 1320431B - B

26

6645236

SNAP PIN

27

6509290

TOOTH for bucket with snap ring pin - Ref. 23 - Was 6660313 - A

28

6509291

SHANK & TOOTH for bucket with snap ring pin - Ref. 23 - Was 6660314 - A
