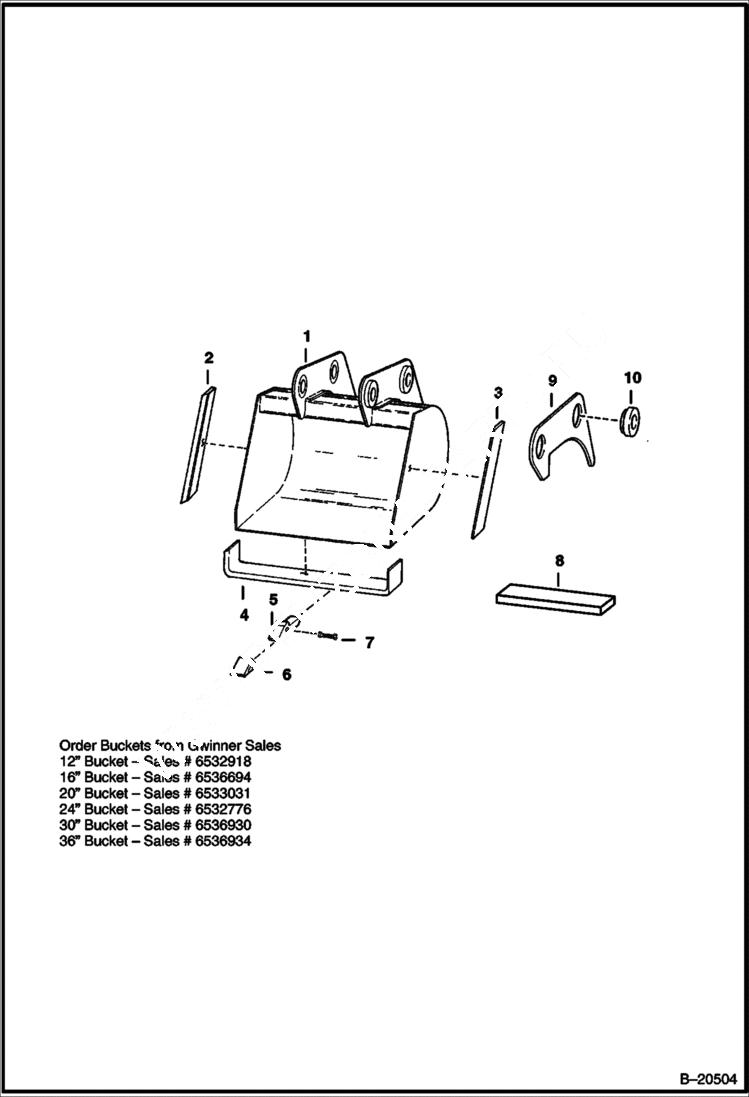

Запчасти Bobcat BACKHOE BACKHOE (Buckets) (811) (8811) 811/8811 BACKHOE

1

BUCKET SALES - trenching - 12'' (304,8 mm), 16'' (406,4 mm), 20'' (508 mm), 24'' (609,6 mm), 30'' (762 mm) & 36'' (914,4 mm)

2

CUTTING EDGE NLA - 12'' (304,8 mm) bucket - 19'' (482,6 mm) long - Order Ref. 8

2

CUTTING EDGE NLA - 16'' (406,4 mm), 20'' (508 mm), 24'' (609,6 mm), 30'' (762 mm), 36'' (914,4 mm) buckets - 20'' (508 mm) long - Order Ref. 8

3

CUTTING EDGE NLA - 12'' (304,8 mm) bucket - 19'' (482,6 mm) long - Order Ref. 8

3

CUTTING EDGE NLA - 16'' (406,4 mm), 20'' (508 mm), 24'' (609,6 mm), 30'' (762 mm) & 36'' (914,4 mm) buckets - 20'' (508 mm) long - Order Ref. 8

4

6593139

EDGE,CUTTING WELD ON BEVELED 10.79'' 12'' (304,8 mm) bucket

4

6536696

CUTTING EDGE 16'' (406,4 mm) bucket

4

6533034

CUTTING EDGE 20'' (508 mm) bucket

4

6532887

CUTTING EDGE 24'' (609,6 mm) bucket

4

6536932

CUTTING EDGE 30'' (762 mm) bucket

4

6536937

CUTTING EDGE 36'' (914,4 mm) bucket

5

6518120

SHANK weld on

6

6630424

TOOTH

7

6567620

PIN

8

6701005

EDGE, CUTTING BULK SINGLE BEV 66.5'' bulk - .50'' (12,7 mm) x 4'' (101,6 mm) x 66.5'' (1689,1 mm)

9

6532781

BRACKET

10

6560596

BUSHING
