BACKHOE (Valve Assembly) (914A)

Запчасти Bobcat BACKHOE BACKHOE (Valve Assembly) (914A) 914/914A BACKHOE

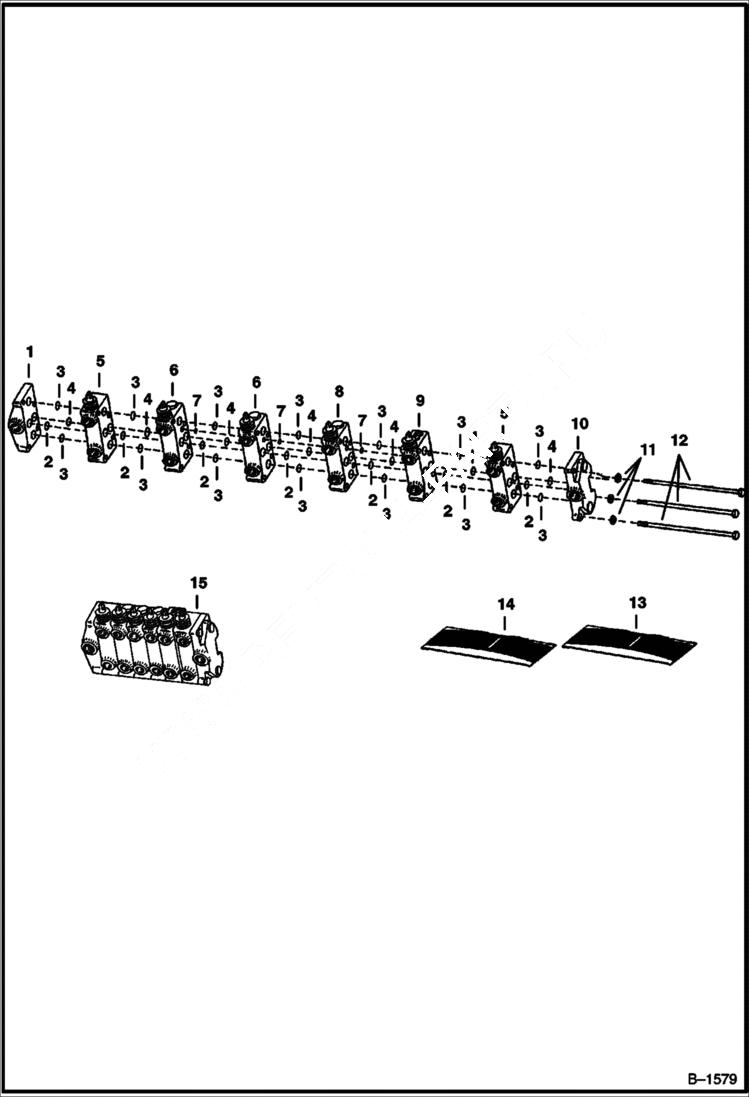

Схема запчастей Bobcat BACKHOE - BACKHOE (Valve Assembly) (914A) 914/914A BACKHOE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6519618

SECTION inlet

2

O-RING NSS

3

O-RING NSS

4

O-RING NSS

5

6519600

SECTION See Illustration BACKHOE/ B1548 stabilizer

6

6519601

SECTION See Illustration BACKHOE/ B1549 bucket & dipperstick

7

O-RING NSS

8

6519603

SECTION See Illustration BACKHOE/ B1550 boom

9

6519619

SECTION See Illustration BACKHOE/ B1551 swing - Was NSS - D

10

947637

PLATE outlet

11

4E6

WASHER

12

947743

BOLT

13

6519615

SEAL KIT between sections W/Ref. 2-4 & 7

14

SEAL KIT NLA - complete overhaul - W/between section kit & all section kits - Was 6519616 - A

15

6519868

VALVE Ref. 1-12
