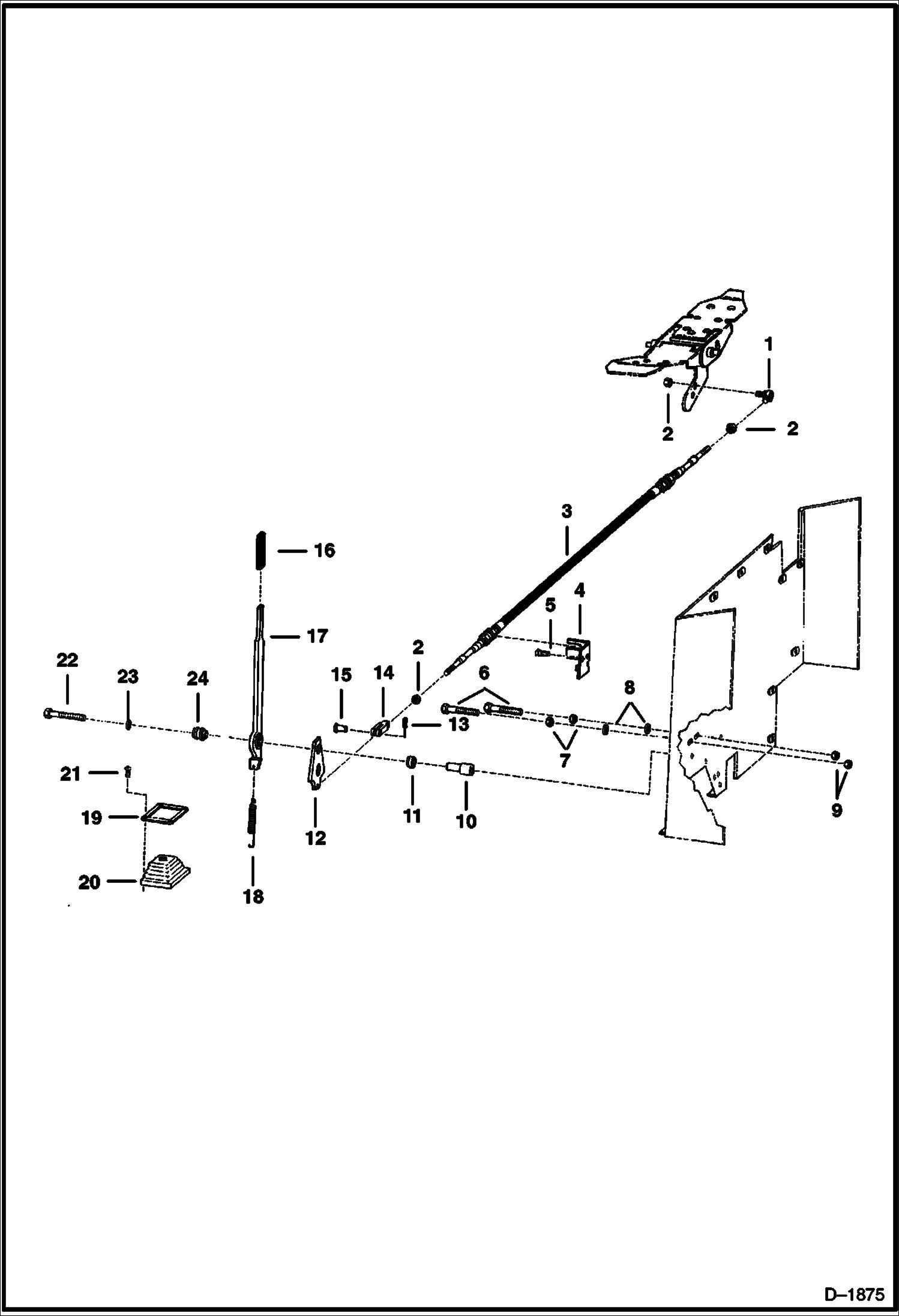

Запчасти Bobcat BACKHOE BACKHOE (Creep Lever) (911B) 911B/914B BACKHOE

1

6631036

JOINT

2

62D4

NUT

3

6646490

CABLE

4

6586194

BRACKET

5

17C510

BOLT

6

17C652

BOLT

7

61D6

NUT 5

8

25E17

WASHER 5

9

85D6

NUT, 5

10

6586193

SHAFT

11

6643375

BUSHING

12

6586192

LINK

13

1F208

PIN

14

2J4200

CLEVIS

15

4F4051

PIN

16

GRIP NLA - Was 6586195 - A

17

6586188

LEVER

18

6610077

SPRING

19

6583697

RING

20

BOOT NLA - Was 6583699 - A

21

24G1012

BOLT

22

17C552

BOLT

23

25E16

WSHR

24

6646493

BEARING
