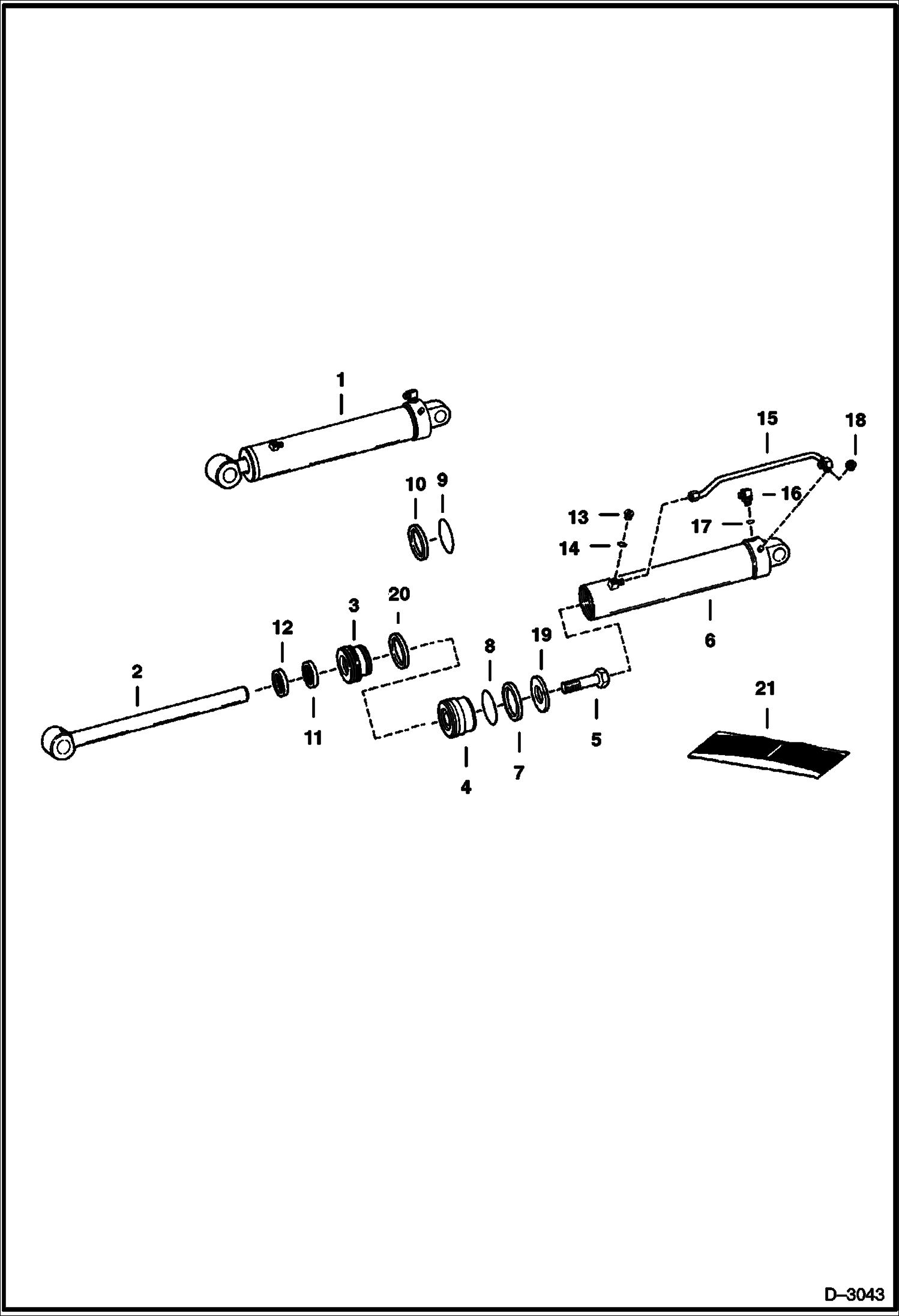

Запчасти Bobcat BACKHOE BACKHOE (Boom Cylinder) (914B) 911B/914B BACKHOE

1

6529704

CYLINDER Ref. 2-19

2

6529698

ROD

3

6593105

HEAD

4

6529706

PISTON

5

18C2044

BOLT

6

6594122

CASE

7

947023

RING Was NSS - D

8

25K30316

O RING 10 Was NSS - D

9

O RING 10 NLA - Order Ref. 20 - Was 25K60320 - B

10

RING NLA - back-up - Order Ref. 20 - Was 73K342 - B

11

6538277

SEAL Was NSS - D

12

6686998

WIPER, ROD CYL Was 6666545 - A

13

PLUG NLA - flat boss face - Was 47K000005B - A

13

90KV5

PLUG tapered boss face

14

79K6

O RING 10 flat boss face

14

95K6

O'RING tapered boss face

15

6594193

TUBE

16

17K7

ELBOW

17

79K10

O RING 10

18

57D5

NUT

19

28E20

WASHER

20

7008351

SEAL, QUAD

21

7196400

KIT, SEAL Ref. 7, 8, 11, 12 & 20
