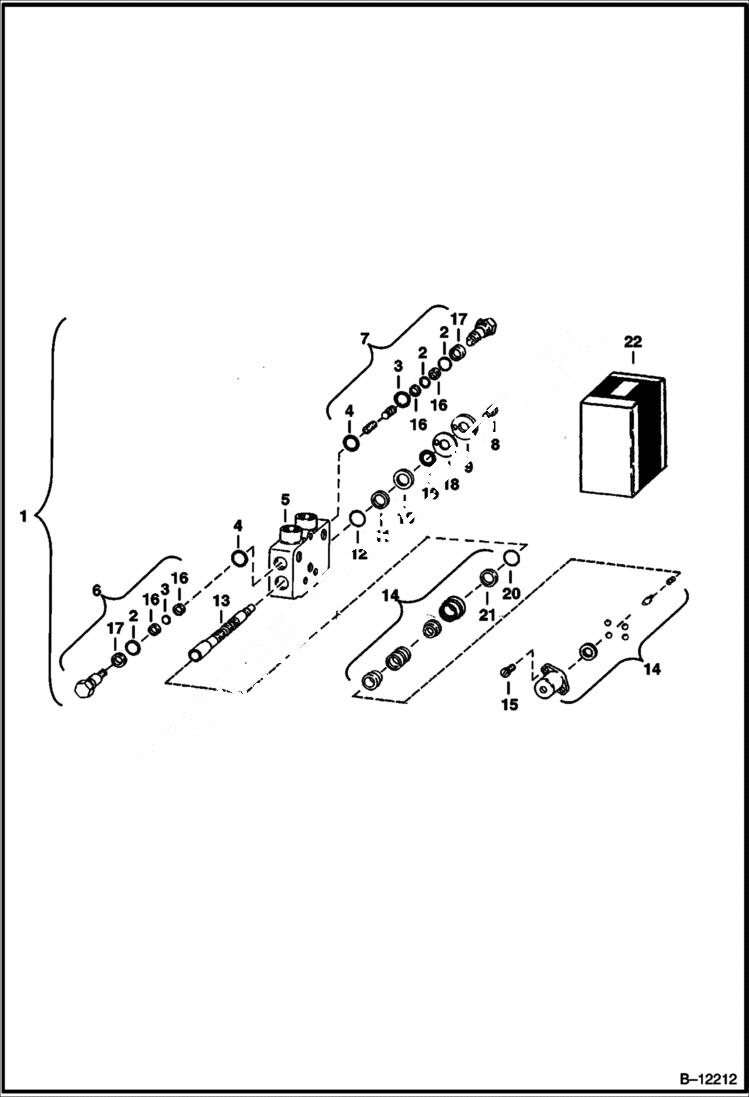

Запчасти Bobcat BACKHOE BACKHOE (Tilt Cylinder Section) (Rear Auxiliary Valve) 911B/914B BACKHOE

1

SECTION NLA - Ref. 2-22 - Was 6647704 - A

2

O-RING NSS

3

O-RING NSS

4

O-RING NSS

5

BODY NSS

6

6647712

RELIEF VALVE

7

6647713

PLUG load check

8

6647689

SCREW

9

6519941

RETAINER

10

6647690

RETAINER

11

WASHER NSS - back-up

12

O-RING NSS

13

SPOOL NSS

14

6647714

POSITIONER

15

6647692

SCREW

16

WASHER NSS - back-up

17

WASHER NSS - back-up

18

6647688

PLATE

19

6647695

WIPER

20

6647715

O-RING

21

58K23

O RING 10 Was 6518335 - A

22

6647694

SEAL KIT Ref. 11 & 12

22

6647693

SEAL KIT Ref. 2-4, 16 & 17
