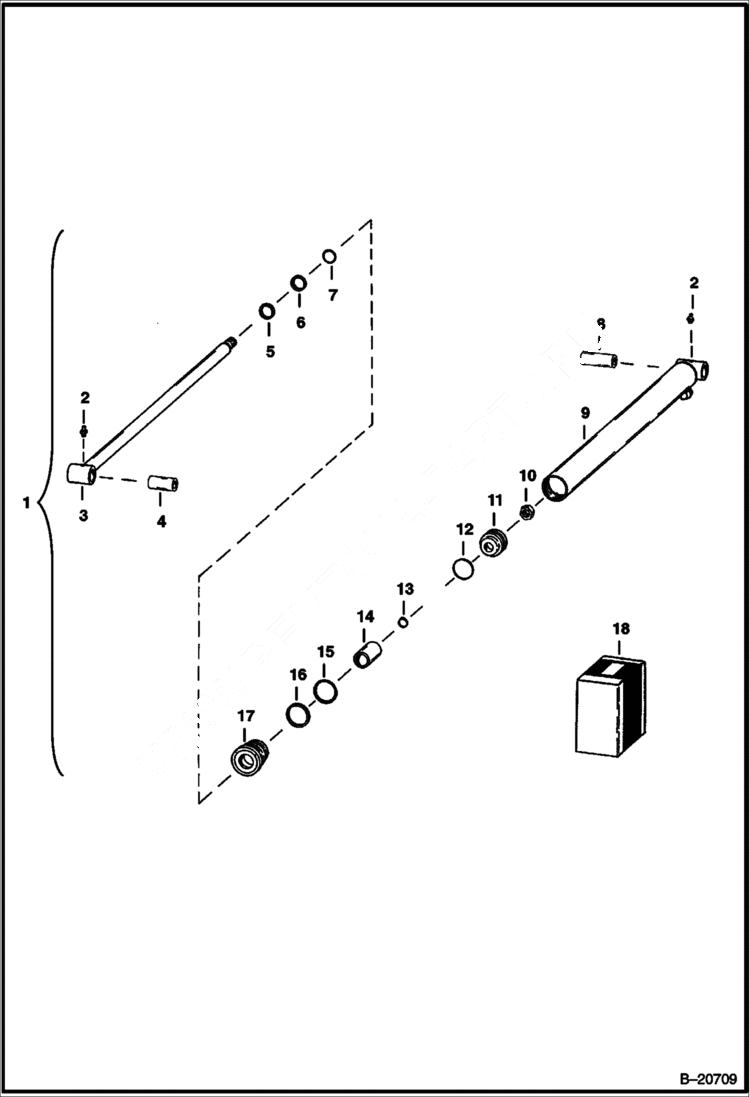

Запчасти Bobcat BACKHOE BACKHOE (Hydraulic Cylinder) (Rear Stabilizer With Weld-on Tube) REAR STABILIZERS

1

CYLINDER NLA - lift - Order 6587789

2

10H35

FITTING, GREASE 10

3

6500767

PISTON ROD

4

6500820

BEARING

5

SEAL NSS - wiper

6

SEAL NSS - u-cup

7

O-RING NSS

8

6500821

BEARING

9

CASE NLA - Order 6587792 & 6529382

10

92D12

NUT Was 86D000012B - A

11

6558196

PISTON

12

O-RING NSS

13

O-RING NSS

14

SPACER NSS

15

O-RING NSS

16

WASHER NSS - back-up

17

6538595

HEAD, CYL HYD Was 6504933 - A

18

6661288

SEAL KIT Ref. 5-7 & 12-16 - Was 6504960 - A
