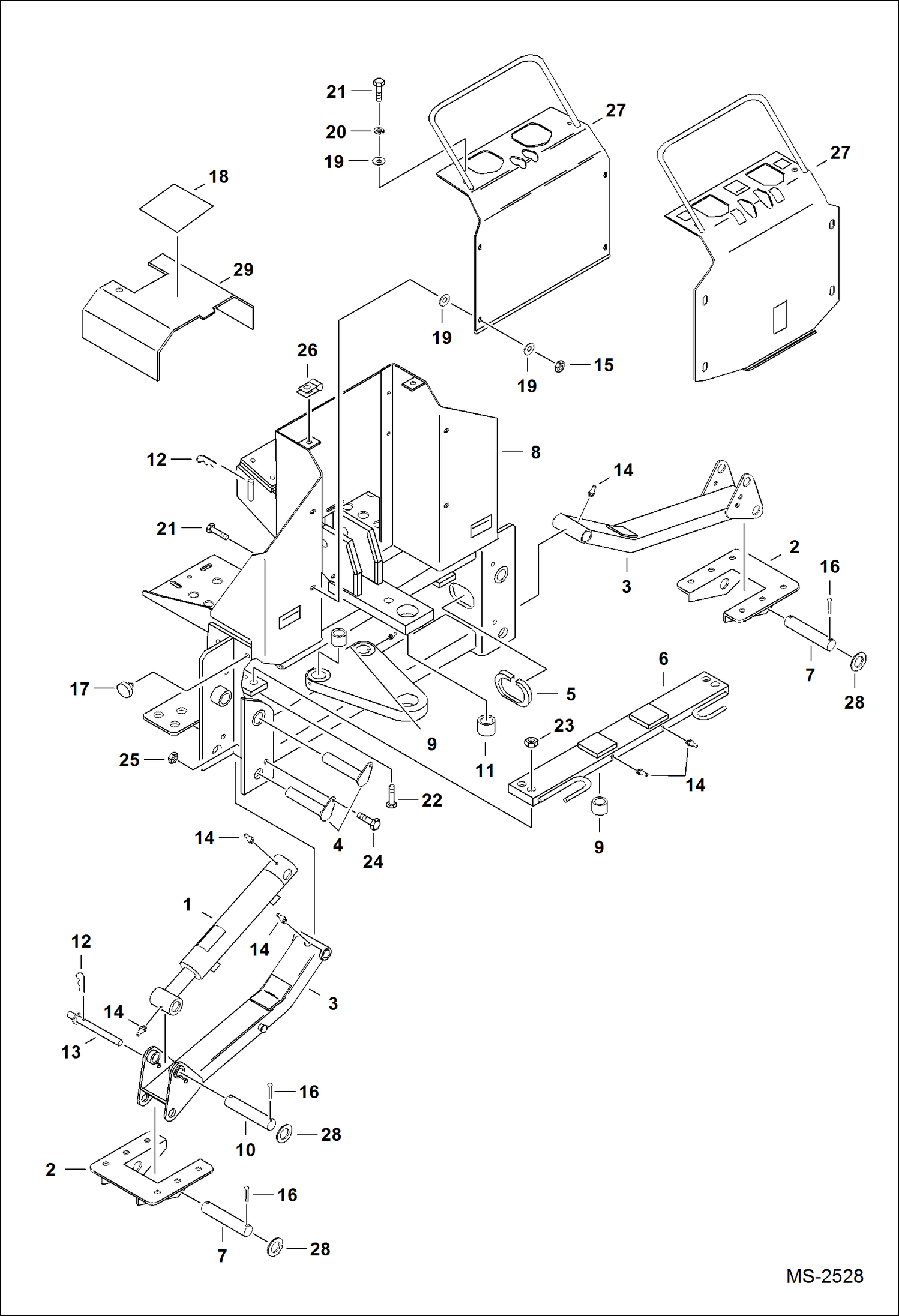

Запчасти Bobcat BACKHOE BACKHOE 6TB (Main Frame) (A914) BACKHOE

1

6693693

CYLINDER, STABILIZER See Illustration BACKHOE 6TB/ MS2535

2

6693727

PAD, STABILIZER

3

6693718

STABILIZER, LH

3

6693719

STABILIZER, RH

4

6693657

PIN, STABILIZER CYL BASE

5

6693739

STRIP, PLASTIC

6

6693760

MOUNT, SWING CYL

7

6693735

PIN, STABILIZER PAD

8

6693795

FRAME, MAIN Was 6693745 - B,D

9

6693724

BEARING, GROOVED

10

6693736

PIN, STABILIZER CYL ROD

11

6698024

BUSHING, SWING

12

1306637

CLIP

13

6698026

PIN, STOP

14

10H35

FITTING, GREASE 10

15

85D5

NUT 5

16

1F624

PIN

17

6698027

BUMPER, RUBBER

18

6693654

PAD, ANTI-SLIP

19

25E15

WASHER

20

4E5

WASHER

21

17C512

BOLT 5

22

17C1036

BOLT

23

85D10

NUT, 5

24

6693580

BOLT

25

85D6

NUT, 5

26

6693807

NUT, SPEED

27

6698028

COVER, PLATE

27

7024516

COVER, PLATE

28

6693691

WASHER, MACHINE

29

6693796

COVER, SEAT BRACKET
