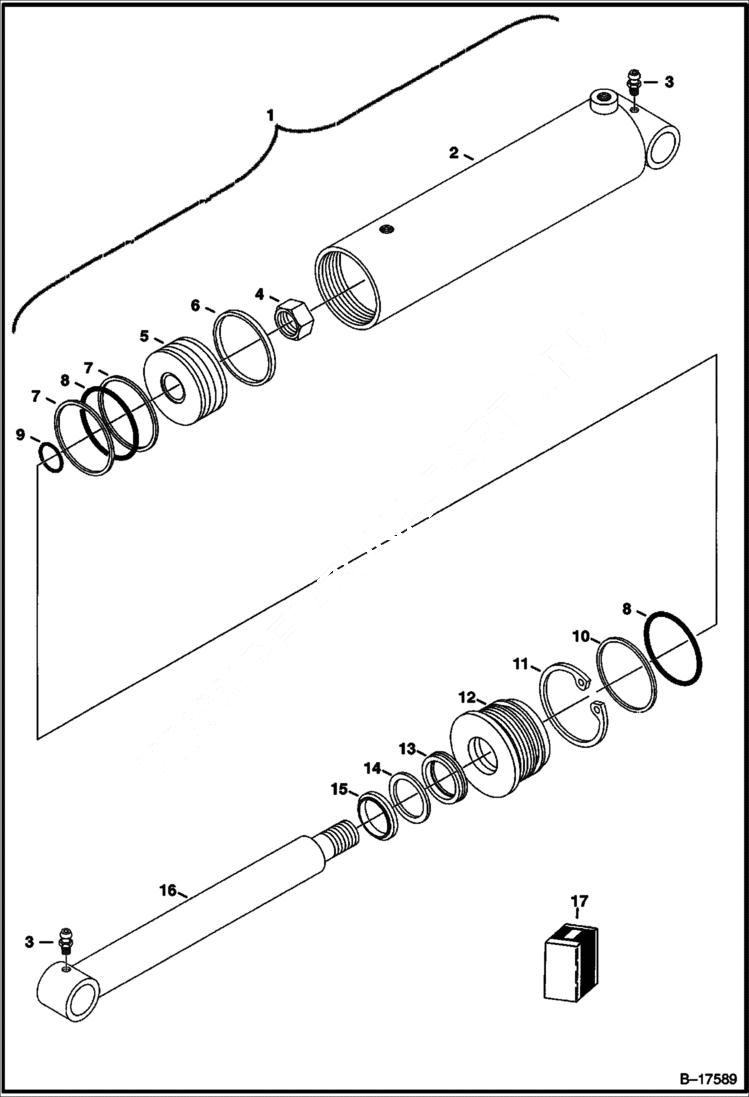

Запчасти Bobcat BALE HANDLERS CYLINDER (Bale Carrier) Телескопические мини-погрузчики

1

6680340

CYLINDER Ref. 2-16

2

10H25

FITTING, GREASE 5

3

6680978

CASE

4

6678311

NUT

5

6680979

PISTON

6

SEAL NSS

7

WASHER NSS - back-up

8

O-RING NSS

9

O-RING NSS

10

WASHER NSS - back-up

11

SNAP RING NSS

12

6680980

HEAD

13

O-RING NSS

14

WASHER NSS - back-up

15

SEAL NSS - wiper

16

6680981

ROD

17

6680397

SEAL KIT Ref. 6-11 & 13-15
