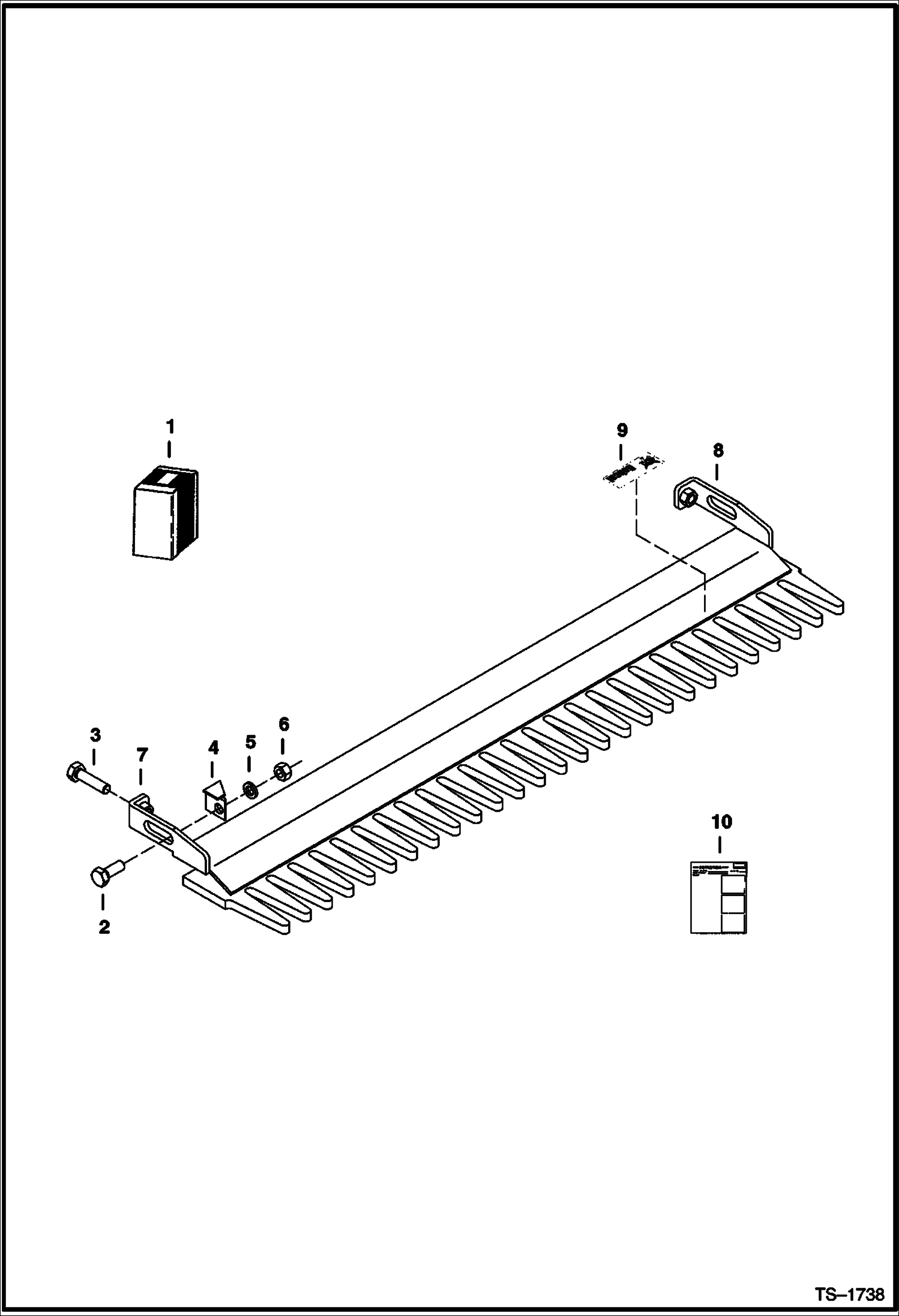

Запчасти Bobcat BUCKET RAKE BUCKET RAKE Loader

1

KIT NLA - Bucket Rake - 62''(1575mm) - Was 6906273 - A

1

KIT NLA - Bucket Rake - 68''(1727mm) - fits on 66'' BKT, 68'' RB BKT & 66'' Comb. Bkt - Was 6906274 - A

1

KIT NLA - Bucket Rake - 74''(1880mm) - fits on 72'' BKT & 74'' RB BKT - Was 6906275 - A

1

KIT NLA - Bucket Rake - 80''(2030mm) - Was 6906276 - A

2

17C1232

BOLT

3

6657025

BOLT 2.50'' long

3

6665905

BOLT 3.00'' long

4

6598357

SHAFT L.H. - Was 6656384 - A

4

6598357

SHAFT R.H. - Was 6656385 - A

5

25E27

WASHER

6

61D12

NUT

7

6906225

BRACKET R.H.

8

BRACKET NLA - L.H. - Was 6906223 - A

9

6727324

DECAL, LOGO BOBCAT AND HEAD

10

6901131

INSTRUCTIONS
