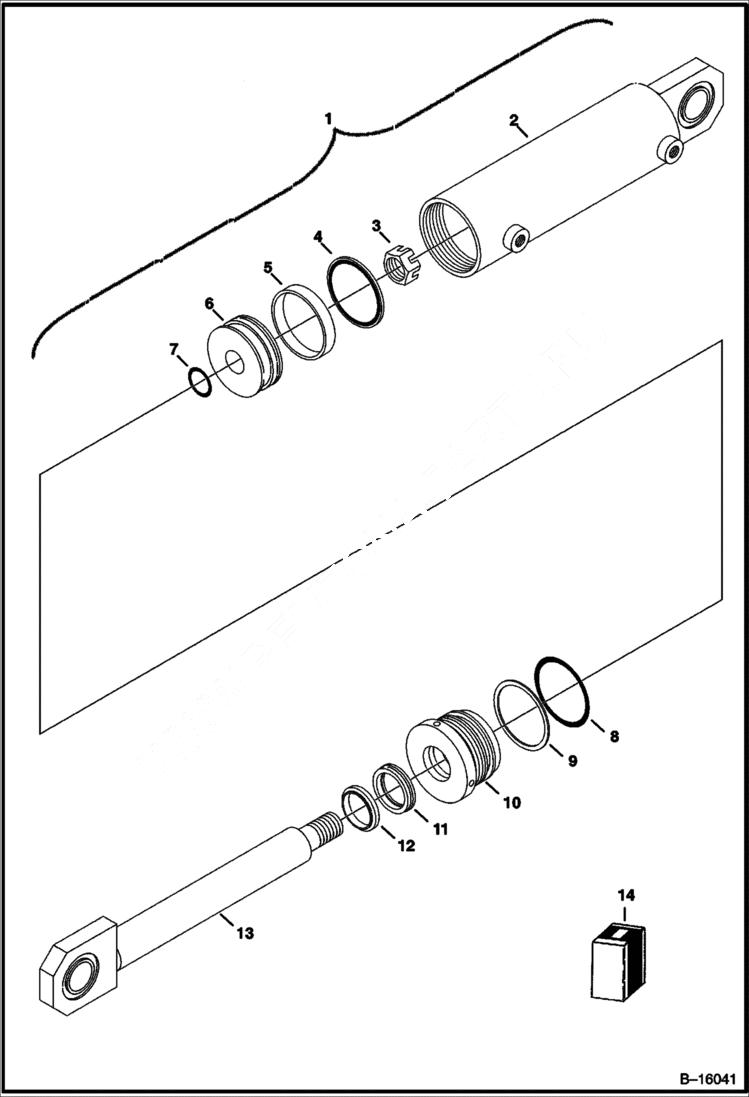

Запчасти Bobcat BUCKETS CYLINDER (Combination Bucket) Телескопические мини-погрузчики

1

CYLINDER NLA - Ref. 2-13 - order 7009375 cylinder assy - Was 6678185 - A

2

6678532

CASE

3

NUT NSS

4

SEAL NSS

5

SEAL NSS

6

6678533

PISTON

7

O-RING NSS

8

SEAL NSS

9

WASHER NSS - back-up

10

6678300

HEAD

11

SEAL NSS - rod

12

SEAL NSS - wiper

13

ROD NLA - order 7009375 cylinder assy - Was 6678534 - A

14

6678541

SEAL KIT Ref. 3, 4. 5. 7. 8. 9. 11 & 12 - Was 6678535 - A
