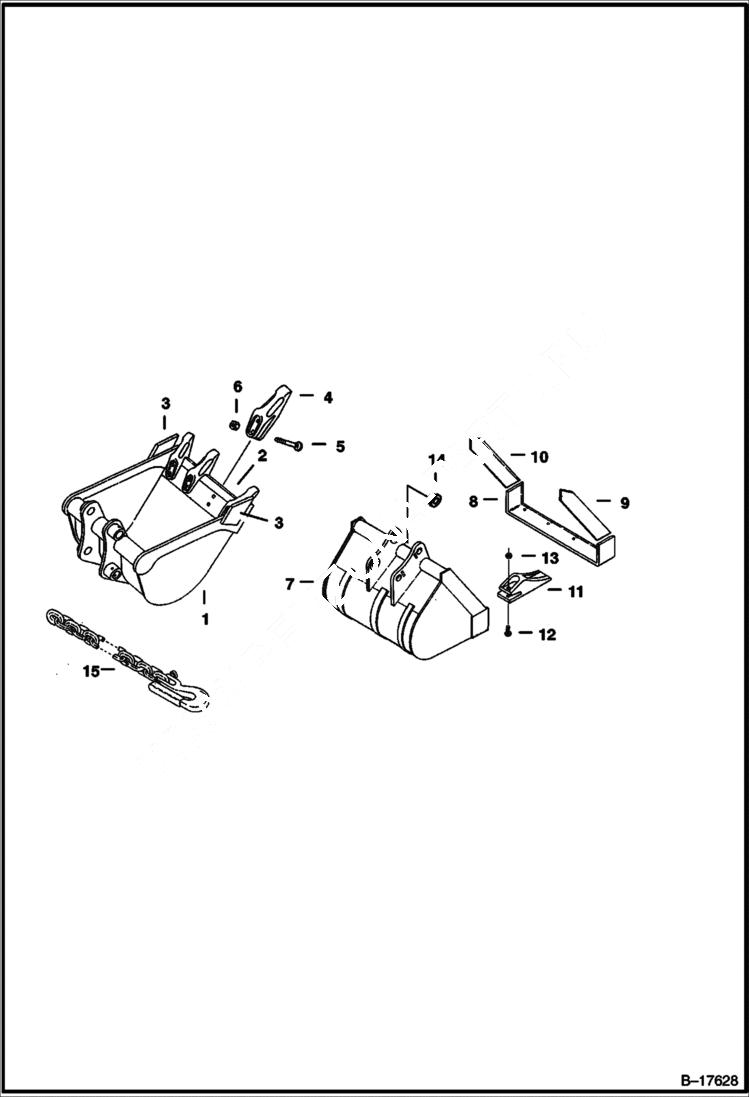

Запчасти Bobcat BUCKETS BUCKET (220) Экскаваторы

1

BUCKET See BTIE-005 NLA - 10'' (255 mm), 12'' (305mm), 16'' (405 mm) & 20'' (505 mm) - Order Ref. 7 - Was Sales

2

CUTTING EDGE NLA - 10'' (255 mm) - Order Ref. 8, 11, 12 & 13 - Was 6533534 - A

2

CUTTING EDGE NLA - 12'' (305 mm) - Order 8, 11, 12 & 13 - Was 6533526 - A

2

CUTTING EDGE NLA - 16'' (405 mm) - Order Ref. 8, 11, 12 & 13 - Was 6533465 - A

2

CUTTING EDGE NLA - 20'' (505 mm) - Order Ref. 8, 11, 12 & 13 - Was 6533518 - A

3

6533472

CUTTING EDGE side

4

TOOTH NLA - Was 6652478 - A

5

17C732

BOLT

6

85D7

NUT

7

BUCKET See BTIE-005 NLA - 10'' (268 mm)- see nameplate P/N 6536551 to identify bucket - order new sales bucket

7

BUCKET 12'' (318 mm)- see nameplate P/N 6536838 to identify bucket - order new sales bucket

7

BUCKET 16'' (418 mm)- see nameplate P/N 6536889 to identify bucket - order new sales bucket

7

BUCKET 20'' (518 mm)- see nameplate P/N 6536842 to identify bucket - order new sales bucket

7

BUCKET SALES - 9'' (230 mm)- see nameplate P/N 6589597 to identify bucket

7

BUCKET 12'' (318 mm)- see nameplate P/N 6589603 to identify bucket

7

BUCKET 16'' (418 mm)- see nameplate P/N 6589615 to identify bucket

7

BUCKET 20'' (518 mm)- see nameplate P/N 6589609 to identify bucket

8

6586358

CUTTING EDGE 10'' (268 mm)- see nameplate P/N 6536551 to identify bucket

8

6589596

CUTTING EDGE 9'' (230 mm)- see nameplate P/N 6589597 to identify bucket

8

6586359

CUTTING EDGE 12'' (318 mm)- see nameplate P/N 6536838 to identify bucket

8

6589608

CUTTING EDGE 12'' (318 mm)- see nameplate P/N 6589603 to identify bucket

8

6586347

CUTTING EDGE 16'' (418 mm)- see nameplate P/N 6536889 to identify bucket

8

6589602

CUTTING EDGE 16'' (418 mm)- see nameplate P/N 6589615 to identify bucket

8

6586360

CUTTING EDGE 20'' (518 mm)- see nameplate P/N 6536842 to identify bucket

8

6589614

CUTTING EDGE 20'' (518 mm)- see nameplate P/N 6589609 to identify bucket

9

6586348

EDGE, CUTTING WELD-ON SIDE L.H. side - for NLA buckets

9

6589552

CUTTING EDGE L.H. side - for SALES buckets

10

6586351

CUT EDGE R.H. side - for NLA buckets

10

6589553

CUTTING EDGE R.H. side - for SALES buckets

11

6684447

TOOTH Was 6667140 - A

12

1CM1245

BOLT 5

13

1DM12

LOCK NUT

14

6536878

BUSHING WELD ON

15

6665374

CHAIN lifting-available thru BOBCAT parts-not factory installed
