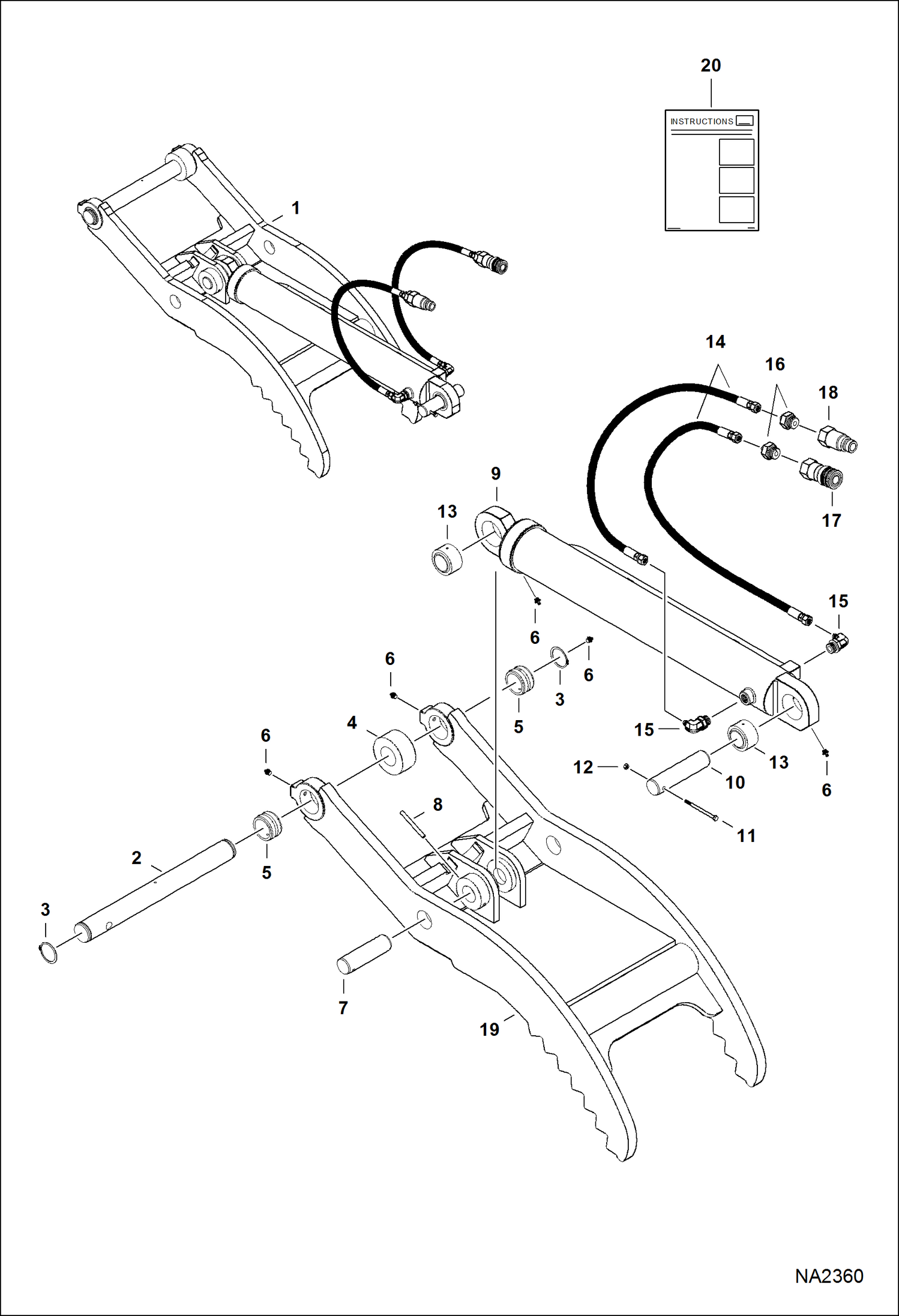

Запчасти Bobcat CLAMPS CLAMP (Werk-Brau) E80 Экскаваторы

1

7171909

KIT, CLAMP HYD Ref. 2-20 - Was SALES - D

2

7010714

PIN pivot

3

7010715

CIRCLIP

4

7010716

SPACER

5

7010717

BUSHING

6

7010709

FITTING, GREASE

7

7010718

PIN

8

14J3148

PIN

9

7010719

CYLINDER, HYD CLAMP no serviceable parts available except seal kit - W/Ref. 13

9

7010720

KIT, SEAL

10

7010721

PIN

11

17C456

BOLT

12

85D4

NUT 5

13

7010722

BUSHING

14

6906660

HOSE, HYD

15

17KB0610

FITTING

16

15KB0612

FITTING, HYD CONNECTOR

17

6672960

COUPLER, FF FEMALE straight

18

6674688

COUPLER, FF MALE straight

19

7010713

CLAMP

20

6987462

INSTRUCTIONS
