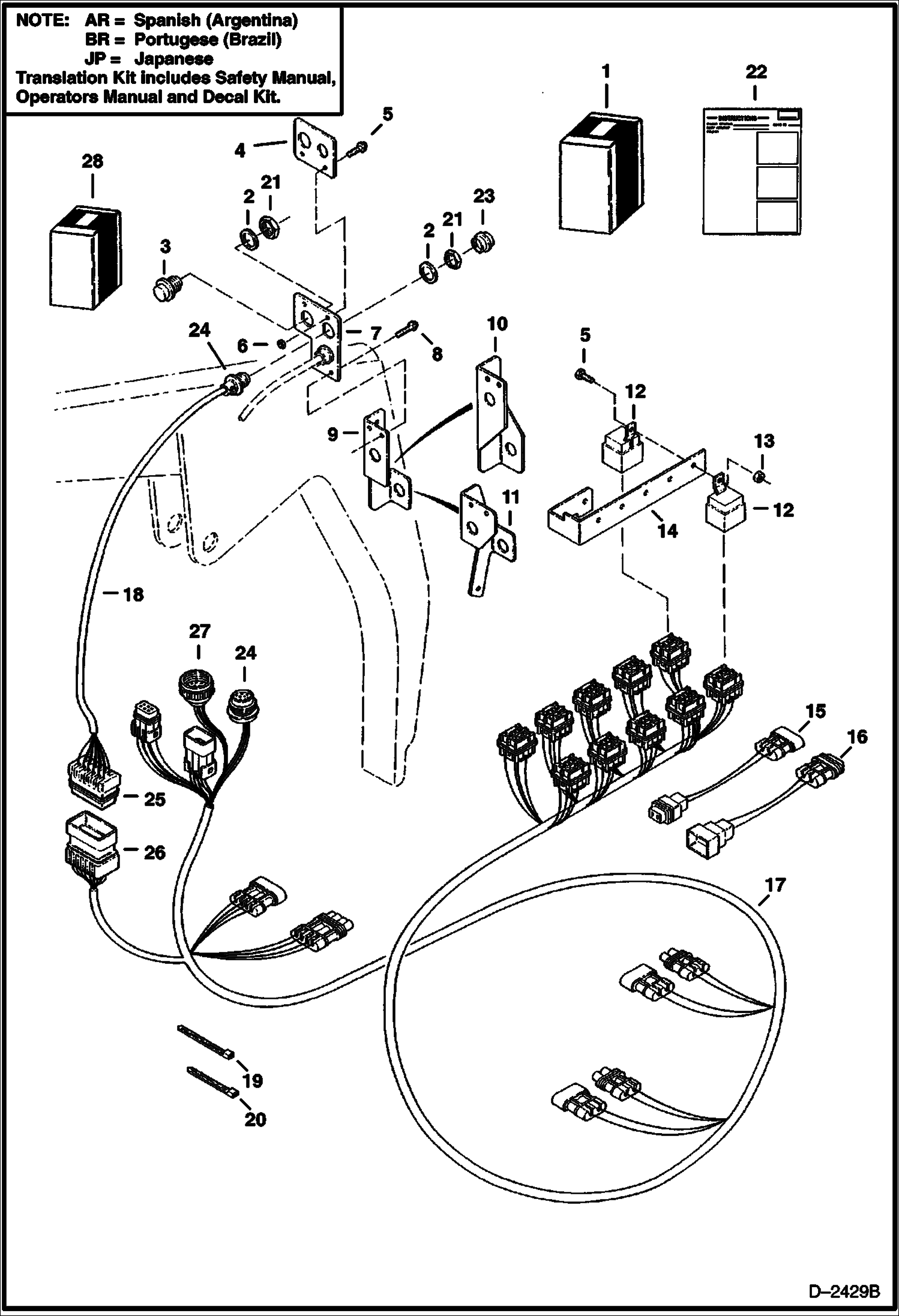

Запчасти Bobcat CONCRETE MIXER CONCRETE MIXER (Remote Attachment Control Kit) (6785) (A016) Loader

1

KIT SALES - Remote Attachment Control - W/Ref. 2-27 - SALES #6716566

2

6664971

WASHER lock

3

6673242

RECEPTICAL storage plug

4

6716806

MOUNT

5

17C410

BOLT 10

6

59D4

NUT 5

7

6716807

MOUNT

8

84G3110

SCREW

9

6713850

MOUNT 751, 753, 763 & 773

10

6714665

MOUNT 863

11

6716808

BRACKET 873

12

6670312

SWITCH, MAGNETIC relay

13

85D4

NUT 5

14

6707649

MOUNT

15

6716170

ADAPTER 863 & 873

16

6716169

ADAPTER 863 & 873

17

6716404

HARNESS

18

6717538

HARNESS

19

6624289

STRAP, TIE

20

6665527

TIE never modify

21

6664972

NUT

22

6900598

INSTRUCTIONS

23

6718931

PLUG terminator

24

6664584

CONNECTOR plug only - 19-pin - Was 6672323 - B

25

6662250

PLUG plug only

26

6662247

PLUG plug only

27

6664585

CONNECTOR plug only - Was 6673118 - B

28

6718679AR

KIT translation - SEE NOTE

28

6718679BR

KIT translation - SEE NOTE

28

6900598AR

INSTRUCTIONS

28

6900598BR

INSTRUCTIONS
