SWING VALVE SHAFT & SEALS Concrete Pump - S/N Prefix 2331

Запчасти Bobcat CONCRETE PUMP SWING VALVE SHAFT & SEALS Concrete Pump - S/N Prefix 2331 Loader

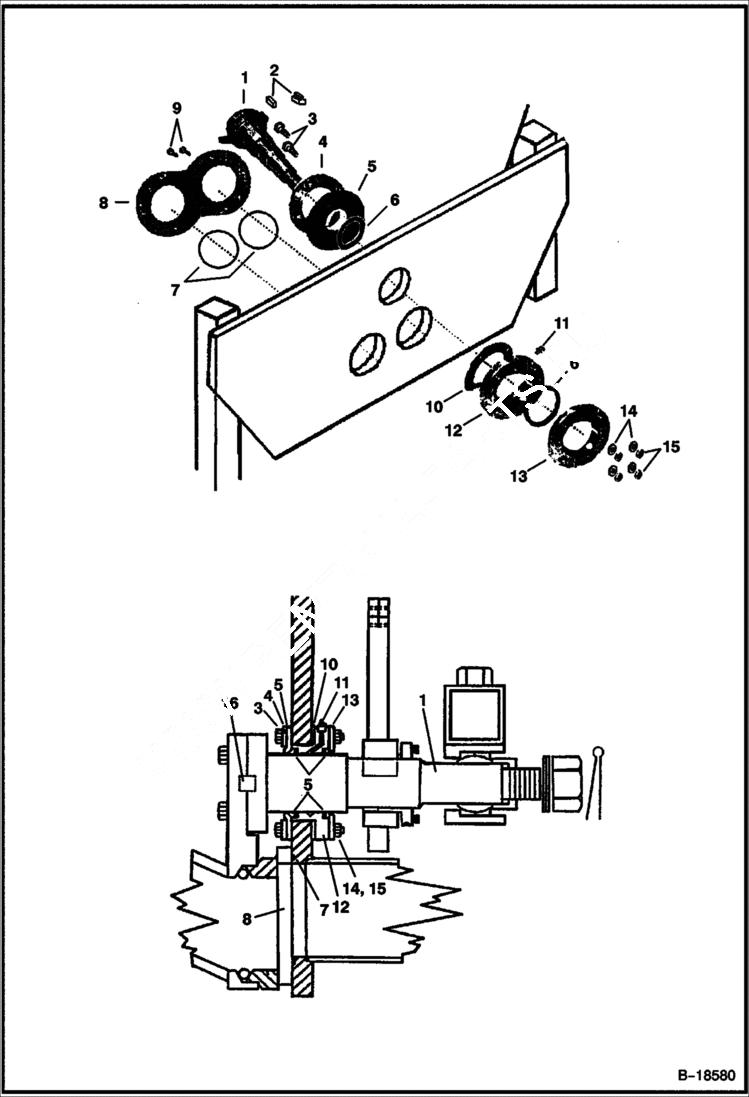

Схема запчастей Bobcat CONCRETE PUMP - SWING VALVE SHAFT & SEALS Concrete Pump - S/N Prefix 2331 Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6676259

SHAFT swing valve

2

6679119

KEY, STEP stepped - Was 7J009208B - B

3

17C652

BOLT

4

6676260

RING

5

6676261

SEAL

6

6676262

SEAL

7

25K40520

O-RING

8

6676263

WEAR PLATE

9

17C828

BOLT

9

28E8

WASHER

10

6676265

SEAL

11

10H25

FITTING, GREASE 5

12

6676266

HOUSING

13

6676267

RETAINER

14

25E17

WASHER 5

15

85D6

NUT, 5

16

6679118

KEY,SWING VALVE straight
