SWING VALVE CYLINDER Concrete Pump - S/N Prefix 2331

Запчасти Bobcat CONCRETE PUMP SWING VALVE CYLINDER Concrete Pump - S/N Prefix 2331 Loader

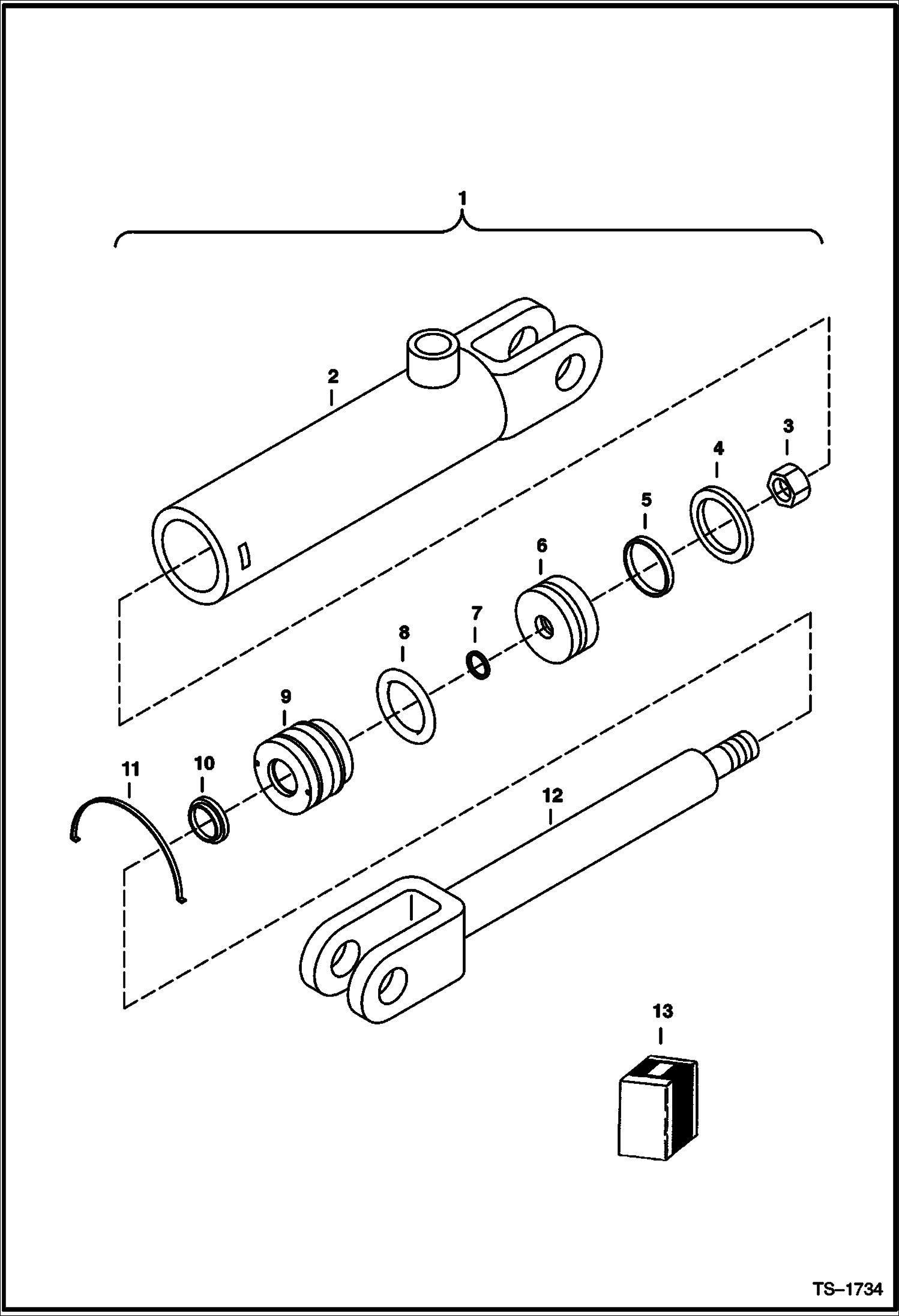

Схема запчастей Bobcat CONCRETE PUMP - SWING VALVE CYLINDER Concrete Pump - S/N Prefix 2331 Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6675944

CYLINDER W/Ref. 2-12

2

6676326

CASE

3

6674431

NUT

4

SEAL NSS

5

O-RING NSS

6

6673620

PISTON, CYL Was 6676323 - A

7

O-RING NSS

8

O-RING NSS

9

6673619

HEAD, CYL HYD Was 6676322 - A

10

SEAL NSS - wiper

11

6674266

RING, RETAINING Was 6676324 - D

12

6676325

ROD

13

6676327

SEAL KIT W/Ref. 4, 5, 7, 8 & 10
