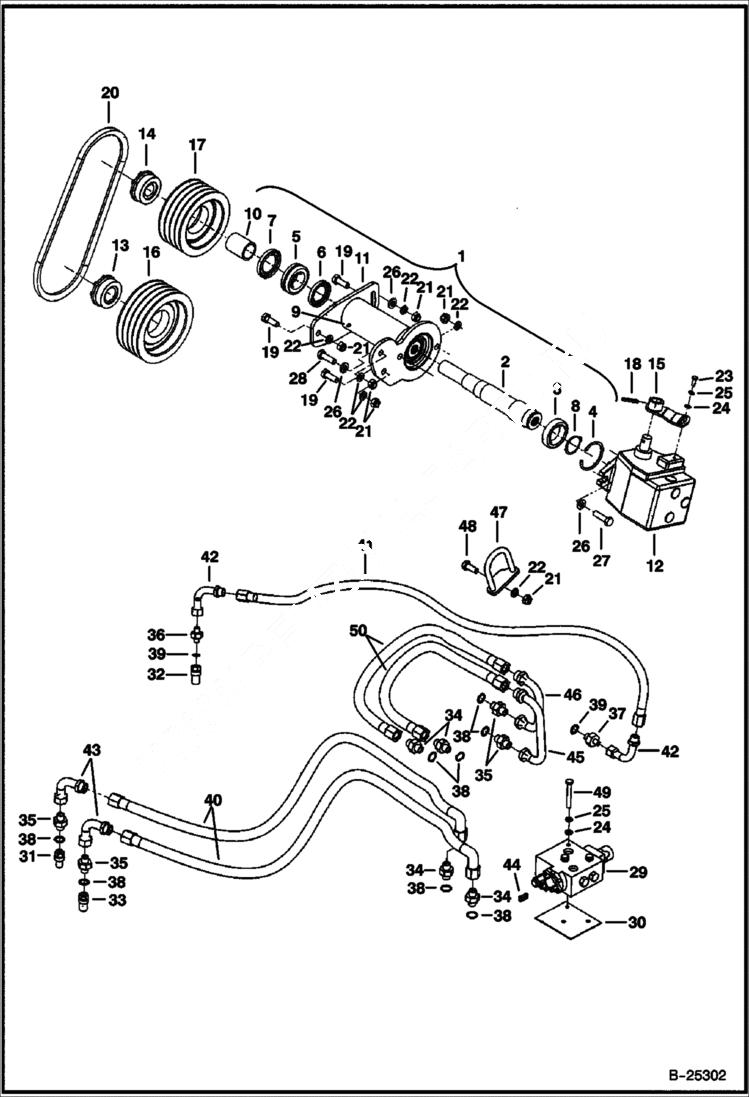

Запчасти Bobcat FLAIL CUTTER FLAIL CUTTER - EUROPE ONLY (Hydraulics & Drive Shaft) (FC155) Loader

1

6687608

HOUSING ASSY W/Ref. 2-11

2

6687596

SHAFT

3

6687595

BEARING

4

6687593

RING

5

6687599

BEARING

6

6687609

SEAL

7

6687600

SEAL

8

6687594

RING

9

6687598

GREASE ZERK

10

6687601

SPACER

11

6687597

HOUSING

12

6687590

MOTOR ASSY See Illustration FLAIL CUTTER/ B25188

13

6689136

LOCK

14

6687602

LOCK

15

6687591

LEVER

16

6689137

PULLEY 200 mm

17

6689138

PULLEY 180 mm

18

6689139

PIN

19

1CM1440

BOLT

20

6689140

BELT

21

53DM14

NUT

22

6EM140

WASHER

23

1CM820

BOLT

24

1EM80

WASHER

25

6EM80

WASHER, SPRING

26

15EM140

WASHER

27

1CM1450

BOLT

28

1CM1445

BOLT

29

VALVE See Illustration FLAIL CUTTER/ PE2421D See BTI371 shutoff

30

6687604

PLATE

31

7001600

COUPLER Male FF - Was 6674688 - B,D

32

7001599

COUPLER Female FF - Case drain - Was 6667805 - B,D

33

7001601

COUPLER Female FF - Was 6672960 - B,D

34

6687743

ADAPTER

35

6687746

ADAPTER

36

6687745

ADAPTER

37

6687744

ADAPTER

38

79K12

O RING 10

39

79K8

O RING 10

40

6687606

HOSE

41

6687607

HOSE

42

6689141

ELBOW

43

6689142

ELBOW

44

6687543

COUPLER connector link

45

6689143

TUBELINE

46

6689144

TUBELINE

47

Guide

48

1CM1435

BOLT

49

1CM880

BOLT

50

6689145

HOSE
