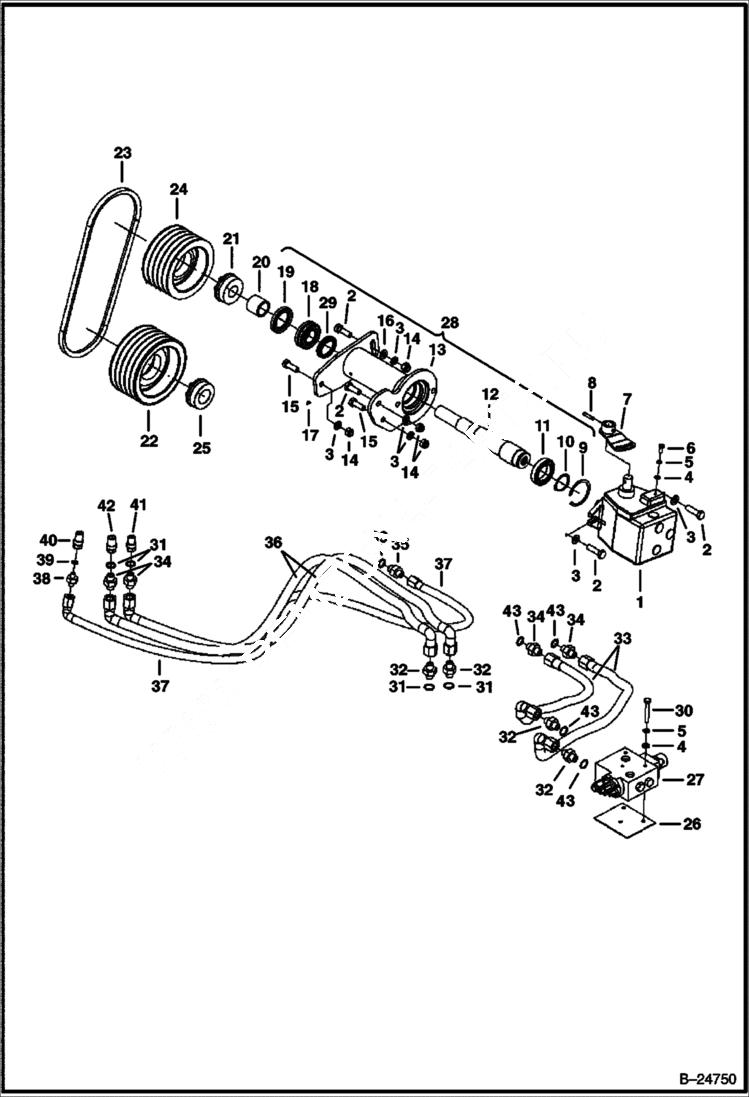

Запчасти Bobcat FLAIL CUTTER FLAIL CUTTER (Hydraulics & Drive Shaft) (FC175) (FC200) Loader

1

6687590

MOTOR ASSY See Illustration FLAIL CUTTER/ B25188

2

1CM1450

BOLT

3

6EM140

WASHER

4

1EM80

WASHER

5

6EM80

WASHER, SPRING

6

1CM820

BOLT

7

6687591

LEVER

8

6687592

PIN

9

6687593

RING

10

6687594

RING

11

6687595

BEARING

12

6687596

SHAFT

13

6687597

HOUSING

14

53DM14

NUT

15

1CM1440

BOLT

16

15EM140

WASHER

17

6687598

GREASE ZERK

18

6687599

BEARING

19

6687600

SEAL

20

6687601

SPACER

21

6687602

LOCK

22

6687756

PULLEY 200mm dia.

23

6687757

BELT

24

6687758

PULLEY 180mm dia.

25

6687603

LOCK

26

6687604

PLATE

27

VALVE See Illustration FLAIL CUTTER/ MS2207A See Illustration FLAIL CUTTER/ PE2421D shutoff

28

6687608

HOUSING ASSY W/Ref. 9-12, 18-20 & 29

29

6687609

SEAL

30

1CM880

BOLT

31

79K12

O RING 10

32

6687743

ADAPTER

33

6687605

HOSE

34

6687746

ADAPTER

35

6687744

ADAPTER

36

6687606

HOSE

37

6687607

HOSE case drain

38

6687745

ADAPTER

39

79K8

O RING 10

40

7001599

COUPLER Female FF - Case drain - Was 6667805 - B,D

41

7001600

COUPLER Male FF - Was 6674688 - B,D

42

7001601

COUPLER Female FF - Was 6672960 - B,D

43

7011918

WASHER copper
