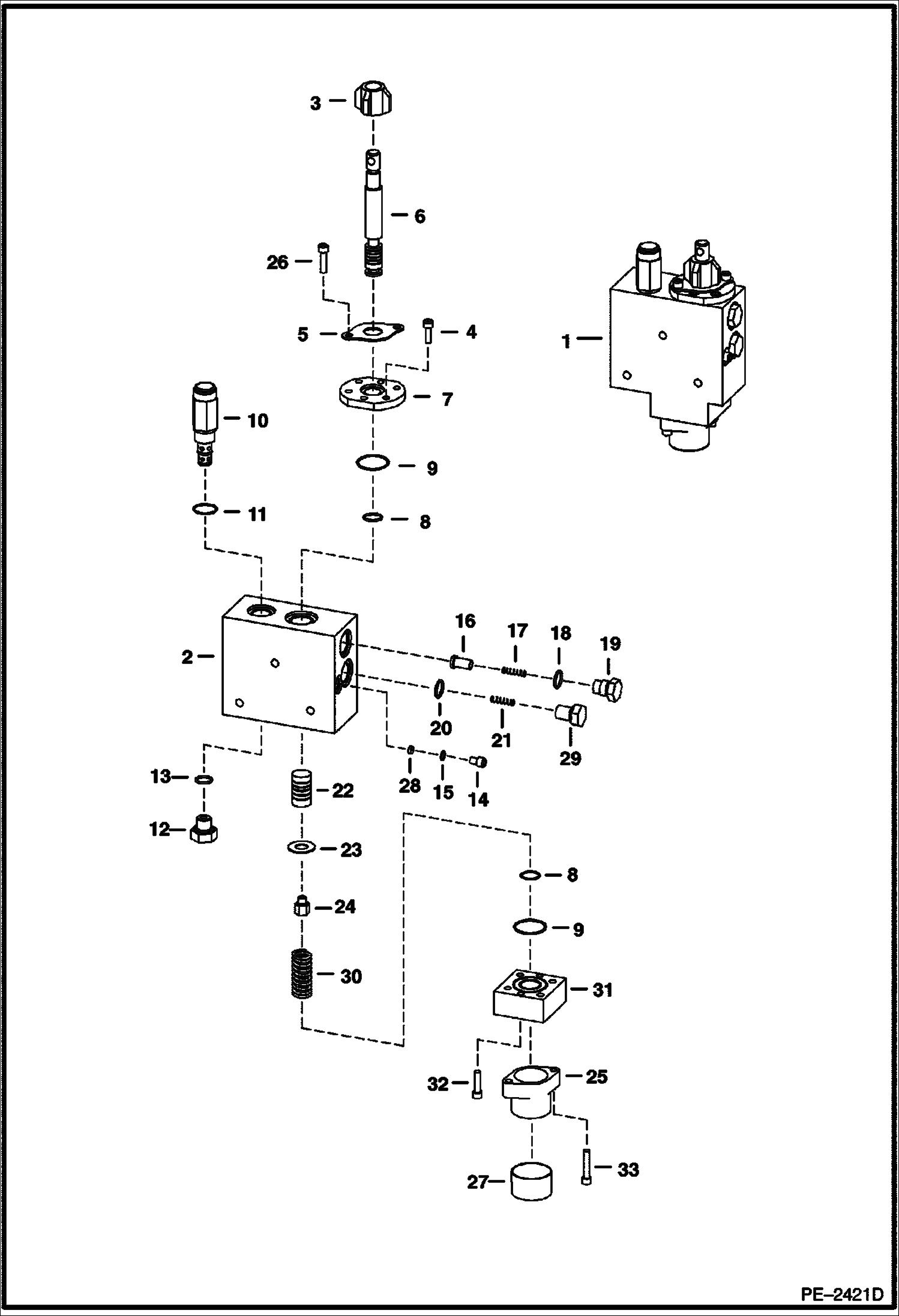

Запчасти Bobcat FLAIL CUTTER FLAIL CUTTER (Shutoff Valve) (Seppi) (FC155 AO1F00101 - 00143) (FC175 467500101 - 00153) (FC200 467300101 - 00196) Loader

1

VALVE See BTI371 See Service Letter SL5180 - NLA - W/Ref. 2-33 - Was 6677568 - A

2

BLOCK NLA - Was 6678248 - A

3

6587763

BOOT

4

29G412

BOLT

5

6589564

RETAINER

6

6678257

SPOOL upper

7

6678258

RETAINER

8

6678251

O-RING

9

6678252

O-RING

10

6673219

RELIEF VALVE

10

6673213

KIT, SEAL

11

79K10

O RING 10

12

90KV5

PLUG

13

99K6

O RING

14

90K3

PLUG Was 90KV3 - D

15

99K4

O'RING

16

6592115

SEAT

17

6592117

SPRING, LOAD CHECK

18

79K8

O RING 10

19

6592116

NUT

20

10J14

BALL

21

6718423

SPRING

22

6678253

SPOOL lower

23

6678254

WASHER

24

6678255

PLUG

25

7101345

BONNET, DETENT HYD VALVE Was 6587633 - C

26

29G416

BOLT

27

6662848

CAP

28

6675959

ORIFICE .030''

29

6678249

GUIDE

30

6678256

SPRING

31

6678250

CAP

32

29G424

BOLT

33

29G436

BOLT
