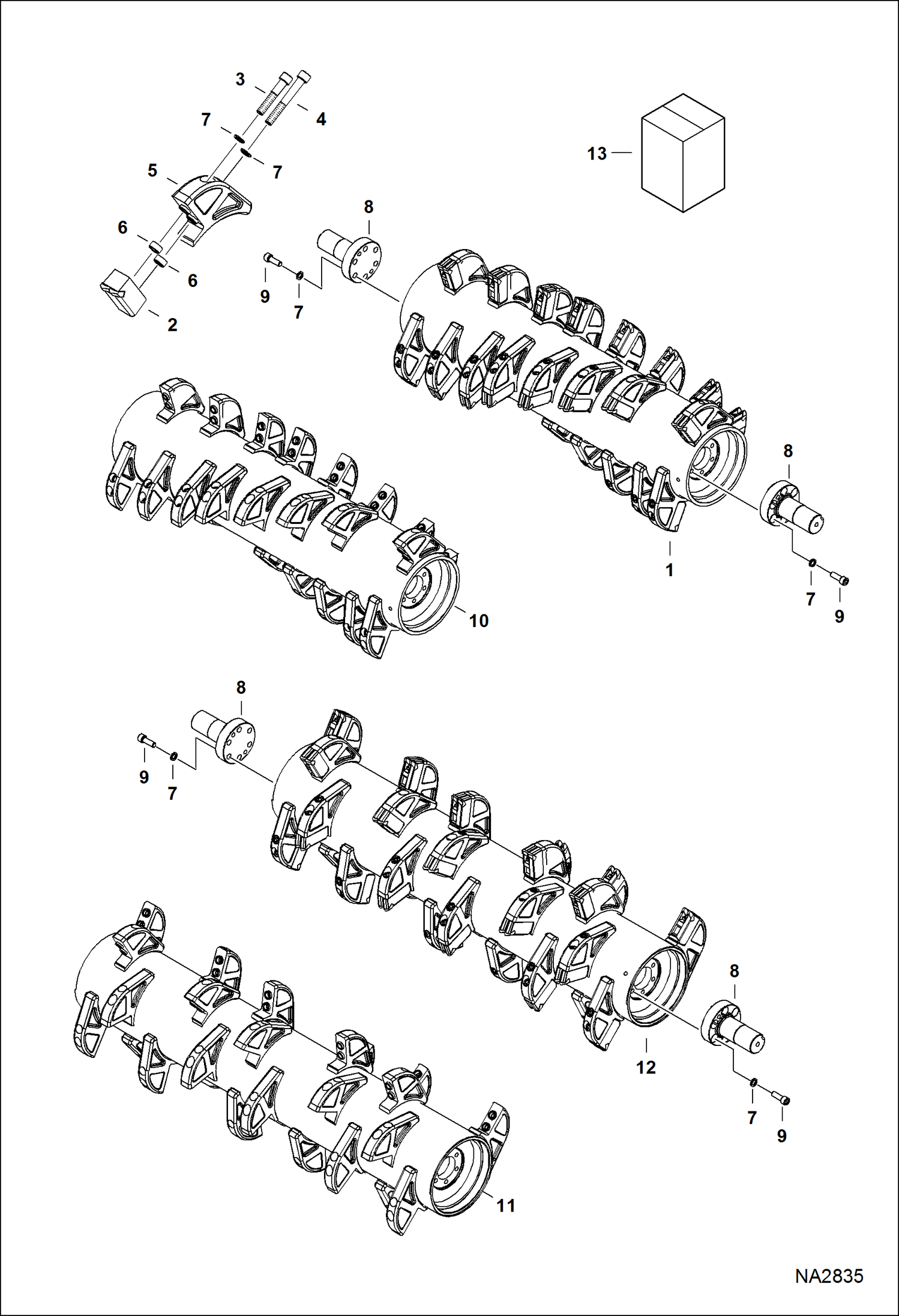

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Rotor Assembly) (103 mm) (4.0625) Tool Holder (FRC50 ANR600101 - 00109) (FRC60 ANR500101 - 00244) Loader

1

ROTOR, ASSY See Illustration FORESTRY CUTTER/ NA6328 - NLA - 50'' - Ref. 2-10 - Order 7023552 rotor assy & (2) of 7023554 flange - Was 7020409 - A

2

TOOL NLA - 103 mm (4.0625'') high - Order Ref. 13 - Was 6692660 - B,D

3

7020616

BOLT

4

6692571

BOLT Was 7020617 - A

5

7020619

HOLDER weld-on - W/Ref. 6 - (24) for 50'', (30) for 60''

6

6698139

BUSHING pressed into Ref. 5

7

7020618

WASHER

8

6692609

SHAFT

9

6692608

BOLT

10

ROTOR NLA - 50'' - W/Ref. 5 & 6 - Order Ref. 1 - Was 7023697 - A

11

ROTOR NLA - 60'' - W/Ref. 5 & 6 - Order Ref. 12 - Was 7023724 - A

12

ROTOR, ASSY See Illustration FORESTRY CUTTER/ NA6329 - NLA - 60'' - Ref. 2-9 & 11 - Order 7023575 rotor assy & (2) of 7023554 flange - Was 7020612 - A

13

6987407

KIT, TOOL ASSY Ref. 2, 3, 4 & (2) of Ref. 7 - (24) for 50'', (30) for 60'' - Was 6990345 - A
