FORESTRY CUTTER (Rotor Assembly) (84 mm) (3.3125) Tool Holder (FRC60 ANR500245 & Above) (60 ATV1)

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Rotor Assembly) (84 mm) (3.3125) Tool Holder (FRC60 ANR500245 & Above) (60 ATV1) Loader

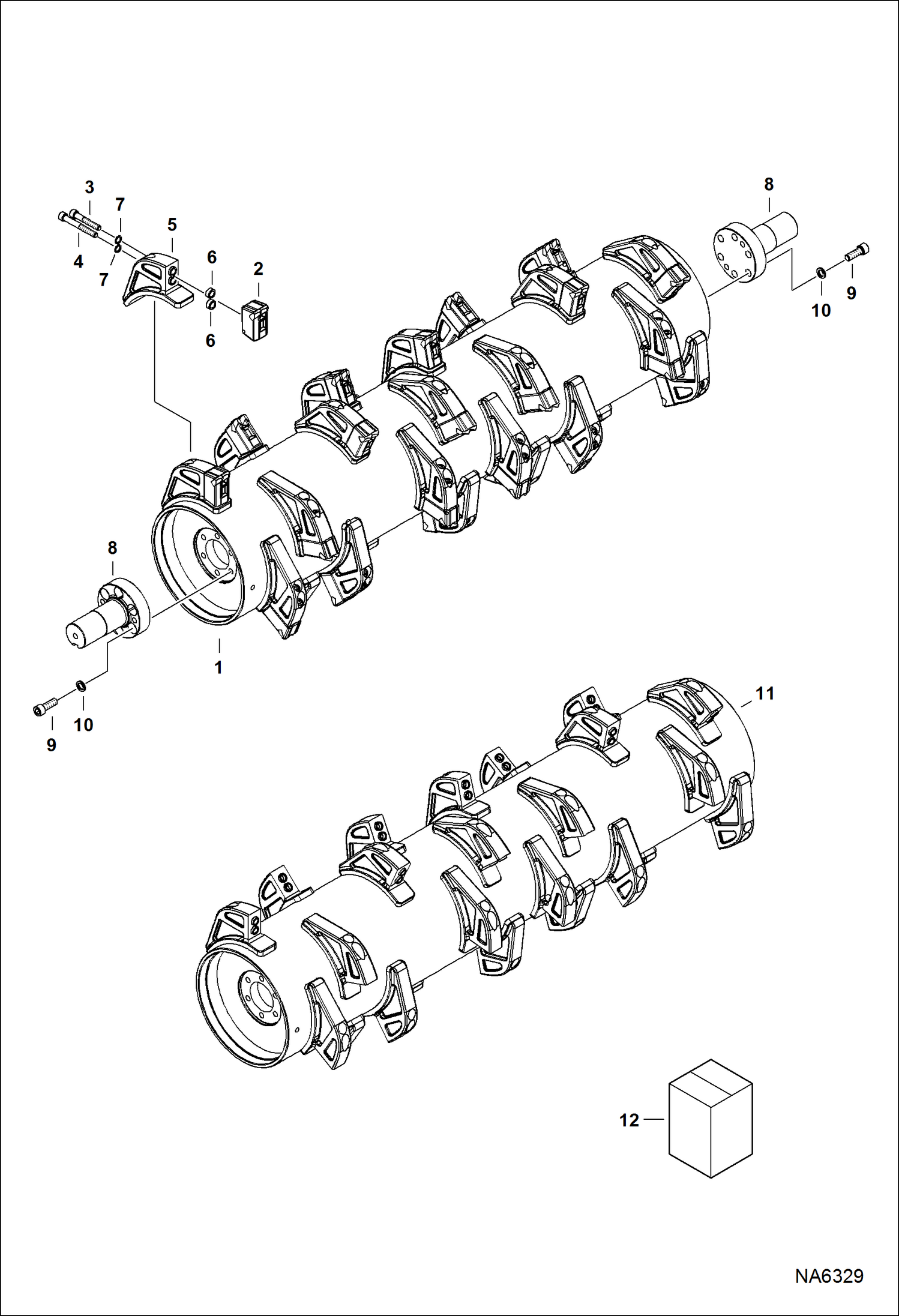

Схема запчастей Bobcat FORESTRY CUTTER - FORESTRY CUTTER (Rotor Assembly) (84 mm) (3.3125) Tool Holder (FRC60 ANR500245 & Above) (60 ATV1) Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7023575

ROTOR, ASSY Ref. 2-11

2

TOOL, ROTOR ASSY NLA - 84 mm (3.3125'') tall - Order Ref. 12 - Was 7023593 - B,D

3

7023592

BOLT

4

7023591

BOLT

5

7023606

HOLDER, TOOL weld-on - W/Ref. 6

6

7023607

BUSHING pressed into Ref. 5

7

7023590

WASHER

8

6692609

SHAFT

9

6692608

BOLT

10

7020618

WASHER

11

7023725

ROTOR W/Ref. 5 & 6

12

6990346

KIT, TOOL ASSY Ref. 2, 3, 4 & (2) of Ref. 7
