FORESTRY CUTTER (Motor Rotary Group) (FRC50 ADTN) (FRC50 ANR6) (FRC60 A6ZB) (FRC60 ANR5)

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Motor Rotary Group) (FRC50 ADTN) (FRC50 ANR6) (FRC60 A6ZB) (FRC60 ANR5) Loader

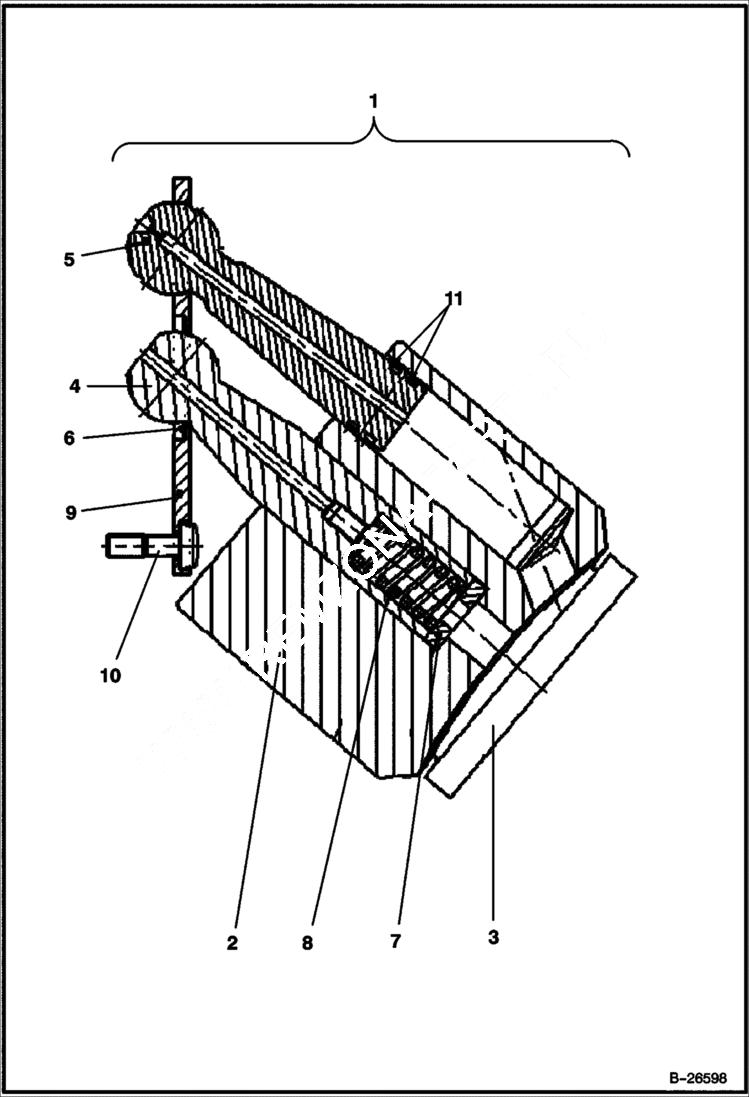

Схема запчастей Bobcat FORESTRY CUTTER - FORESTRY CUTTER (Motor Rotary Group) (FRC50 ADTN) (FRC50 ANR6) (FRC60 A6ZB) (FRC60 ANR5) Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6692897

ROTARY GROUP

2

CYLINDER NSS

3

PLATE NSS

4

6692905

PIN

5

6692906

PISTON W/Ref. 11

6

6692907

WASHER

7

ADJUSTMENT SHIM NSS

8

6692908

SPRING

9

6692909

RETAINING PLATE

10

6967737

SCREW Was 6692910 - D

11

SEAL NLA - Order 6692906 - Was 6692911 - A
