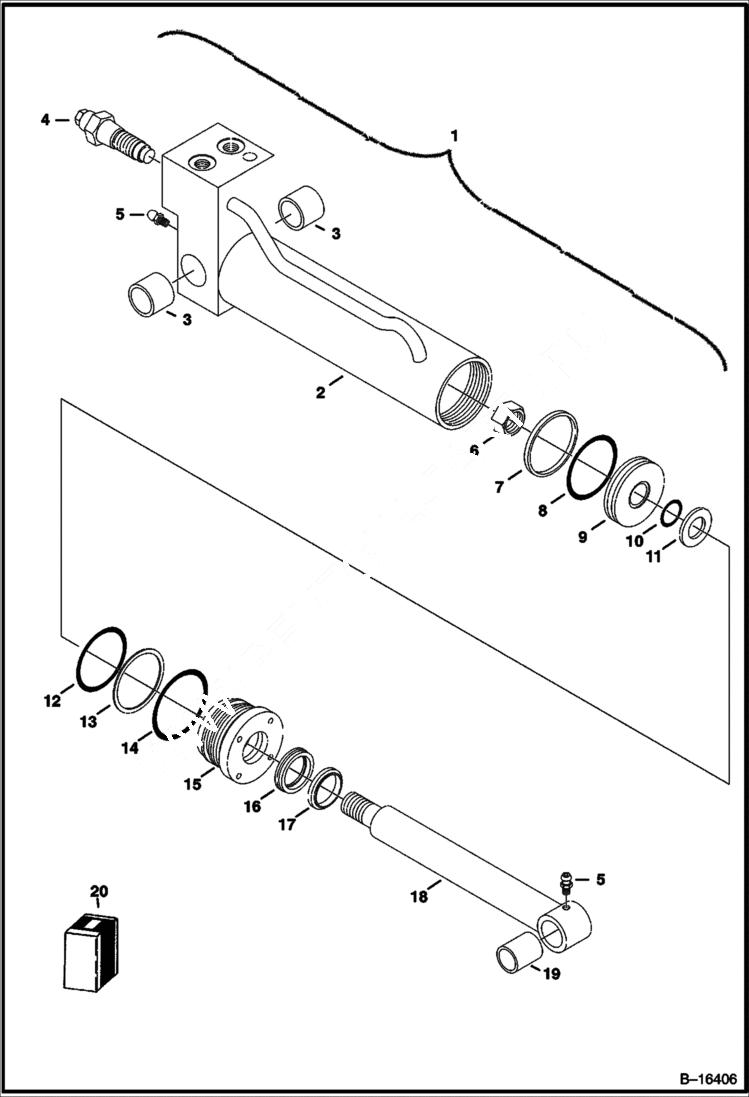

Запчасти Bobcat GRAPPLES CYLINDER (Scrap Grapple & Tilt Carriage) Телескопические мини-погрузчики

1

6678186

CYLINDER Ref. 2 - 19

2

6679196

CASE

3

6678539

BUSHING

4

6679198

VALVE over center

5

10H35

FITTING, GREASE 10

6

6678311

NUT

7

SEAL NSS

8

O-RING NSS

9

6678310

PISTON

10

O-RING NSS

11

6679199

WASHER

12

O-RING NSS

13

WASHER NSS - back-up

14

O-RING NSS

15

6678299

HEAD

16

SEAL NSS

17

SEAL NSS - wiper

18

6679200

ROD

19

6678540

BUSHING

20

6678541

SEAL KIT Ref. 7, 8, 10, 12-14, 16, 17
