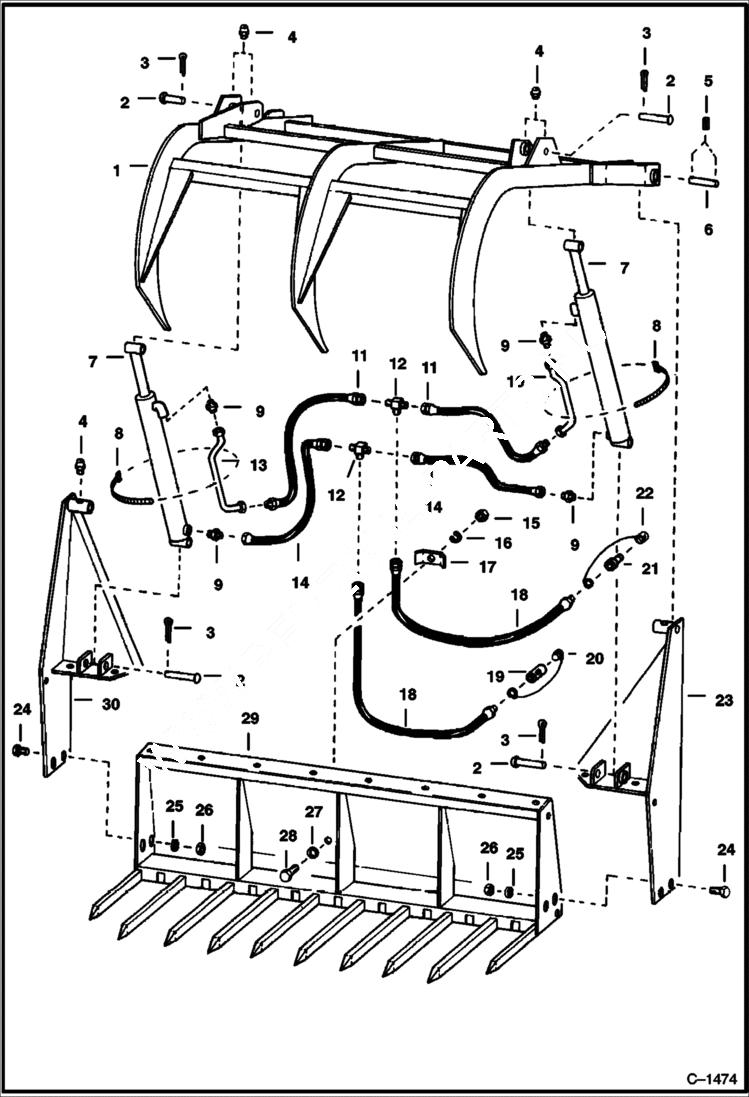

Запчасти Bobcat GRAPPLES UTILITY GRAPPLE - 444 & 500 Direct Mount Loader

1

TEETH NLA - grapple - Was 6504687 - A

2

6502783

PIN

3

PIN NLA - Was 1F820 - A

4

10H35

FITTING, GREASE 10

5

668312

PIN ROLL

6

6502488

PIN

7

CYLINDER See Illustration GRAPPLE CYLINDER - 444 & 500 Direct Mount/ B18283 See Illustration GRAPPLE CYLINDER - 444 & 500 Direct Mount/ C3112 See Illustration GRAPPLE CYLINDER - 444 & 500 Direct Mount

8

6503117

TIE

9

89F5

CONNECTR See Illustration GRAPPLE CYLINDER - 444 & 500 Direct Mount/ C3112 NOT USED WITH NEW CYLINDER 6531681 - FOR CORRECT FITTINGS FOR NEW CYLINDER

10

6501042

TUBE

11

6501050

HOSE

12

10K6

FITTING

13

6501041

TUBE

14

6501055

HOSE

15

61D6

NUT 5

16

4E6

WASHER

17

6502426

CLAMP

18

6501099

HOSE

19

6598756

QUICK COUPLER female half

19

25K40026

O RING 10

20

6515167

PLUG W/Chain

21

6598755

QUICK COUPLER male half

22

6515168

CAP W/Chain

23

6504688

FRAME

24

17C816

BOLT

25

4E8

WASHER

26

61D8

NUT 5

27

25E17

WASHER 5

28

17C632

BOLT 5

29

FORK See Illustration UTILITY FORK - 444-500 Direct Mount/ C1473 UTILITY

30

6504689

FRAME
