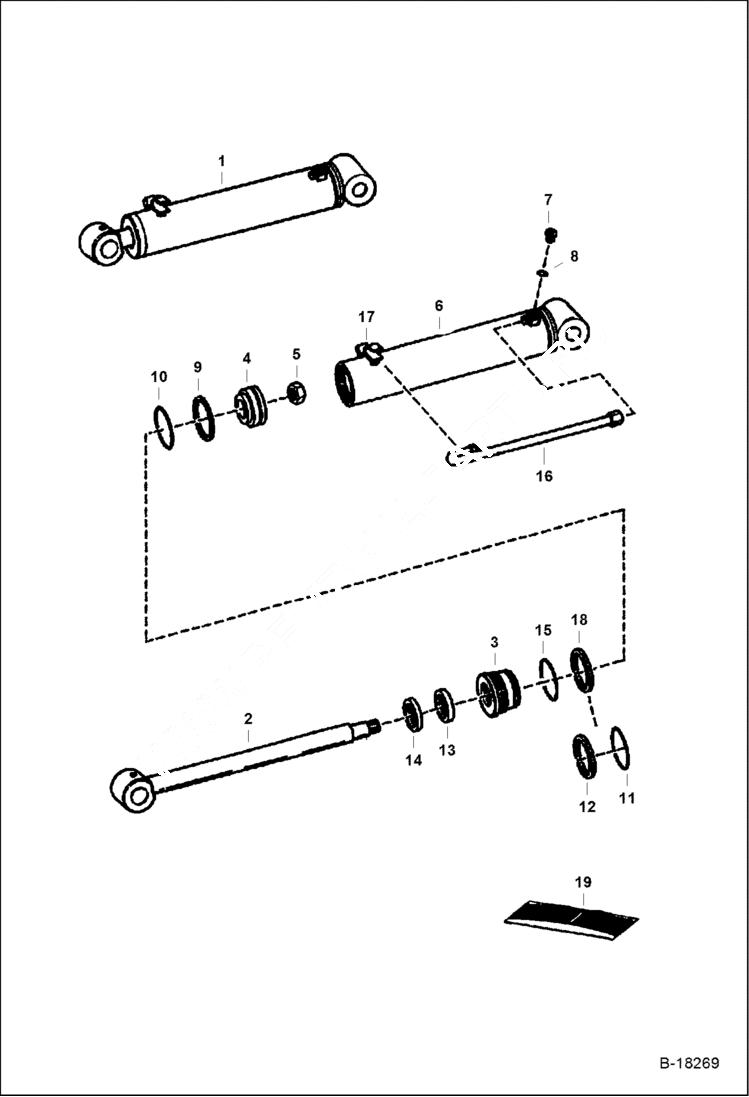

Запчасти Bobcat GRAPPLES CYLINDER 78 in. Grapple Fork, 80 in. Grapple Bucket & Root Grapple (78 (7752) Loader

1

CYLINDER NLA - Ref. 2 - 16 - Order 7121965 - Was 6810490 - A

2

6810491

ROD 1.25'' dia.

3

7106798

HEAD Was 6537162 - A

4

6808611

PISTON

5

92D14

NUT

6

7121965

CYLINDER ASSY Was 6808780 - A

7

90KV2

PLUG

8

95K3

O'RING

9

6519328

SEAL

10

25K30126

O RING 10 Was 54K30126 - B

11

25K60128

O RING 10 Was 54K60128 - A

12

73K328

RING back-up

13

6667324

SEAL

14

6665208

SEAL

15

82K140

O-RING Was 58K000140B - B

16

6808806

TUBE

17

6690910

CLAMP

18

SEAL. QUAD NLA - Order Ref. 11 & 12 - Was 7207334 - A

19

7137786

KIT, SEAL Ref. 5 & 9-15 - Was 6808805 - A
