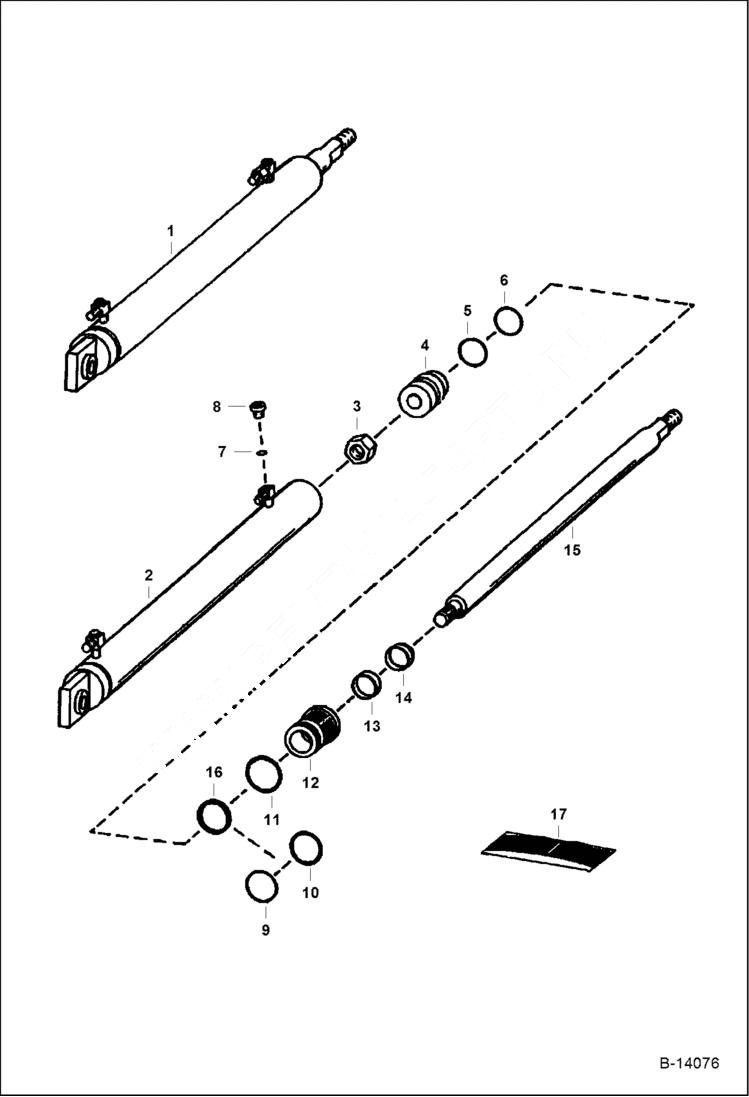

Запчасти Bobcat LANDSCAPE RAKE LANDSCAPE RAKE (Lift Cylinder) (A Series) Loader

1

CYLINDER NLA - Ref. 2 - 15 - Order 6587808 - Was 6587756 - A

2

6587761

CASE

3

92D10

NUT

4

6586693

PISTON

5

6516231

SEAL

6

54K30118

O-RING Was 25K030118B - A

7

79K3

O RING 10

8

47K2

PLUG W/Ref. 7

9

54K40124

O-RING Was 25K040124B - A

10

73K224

RING back-up

11

82K136

O-RING Was 58K136 - B

12

6538595

HEAD, CYL HYD

13

6667323

SEAL rod - Was 6704243 - A

14

6666542

SEAL, WIPER ROD Was 1657083B - A

15

6587757

ROD

16

7008781

SEAL, QUAD

17

7137772

SEAL KIT Ref. 3, 5, 6, 11, 13, 14, & 16 - Was 6803474 - A
