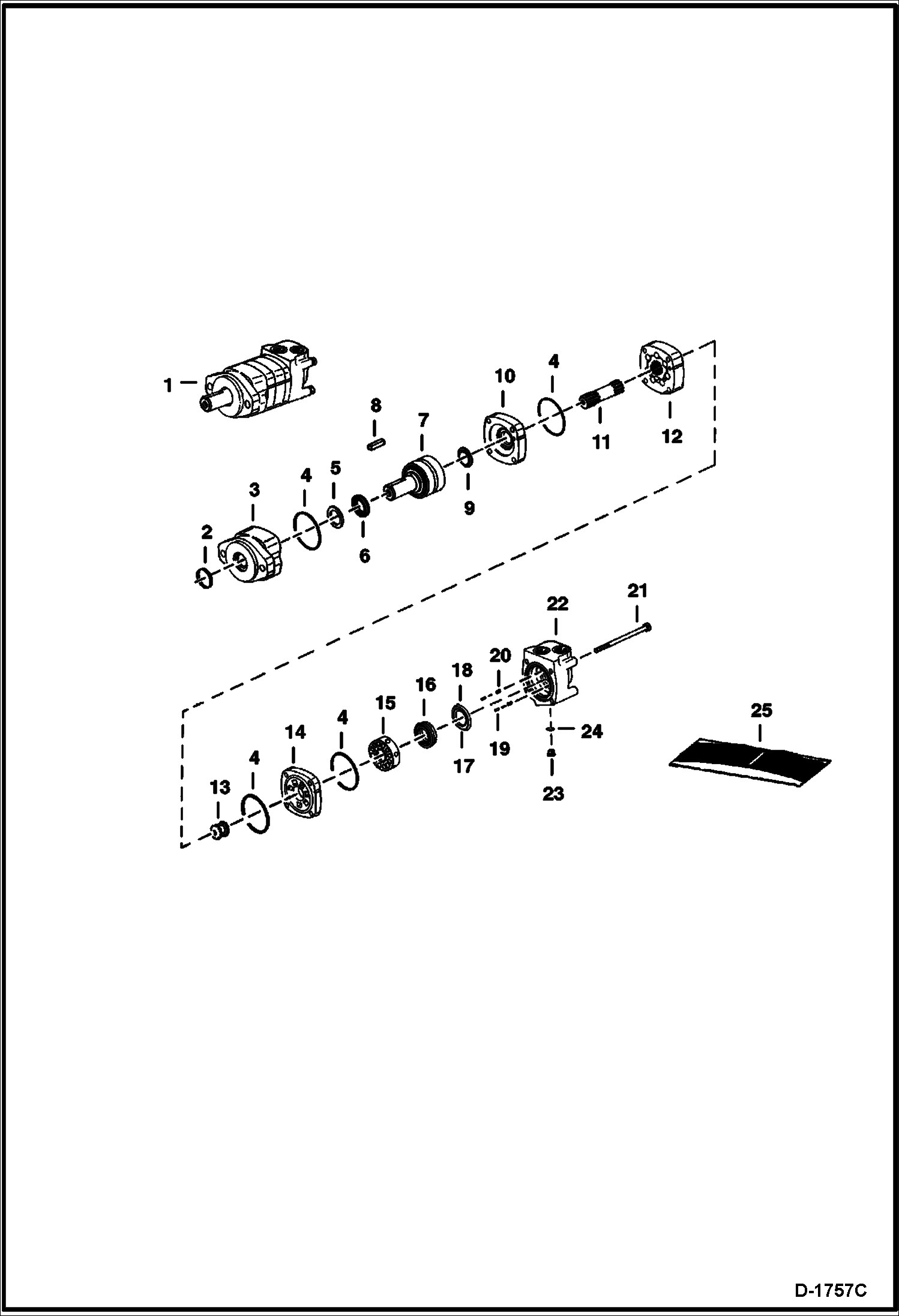

Запчасти Bobcat MOWER MOWER (Drive Motor) (90 A8SD) Loader

1

6673430

MOTOR

2

6630029

SEAL shaft - 1.28'' ID x 1.57'' OD x .13'' wide

3

6632285

HOUSING

4

6662955

SEAL

5

6659511

BACKUP RING

6

6689096

SEAL Was 6665224 - A

7

6683908

SHAFT ASSY

8

6634899

KEY

9

1992098

SEAL

10

6632286

WEAR PLATE

11

6665335

SHAFT

12

6665336

GEROLER

13

1992084

DR VALVE

14

6656368

PLATE

15

6632288

VALVE

16

6630027

BALANCE RING

17

1992100

SEAL

18

SEAL NLA - Order Ref. 25 seal kit - Was 6653300 - A

19

1992102

PIN

20

1992088

SPRING

21

6665337

BOLT

22

6632348

HOUSING

23

1992104

PLUG W/Ref. 24

24

O-RING NSS

25

6648973

KIT, SEAL W/Ref. 2, 4 - 6, 9, 17, 18 & 24
