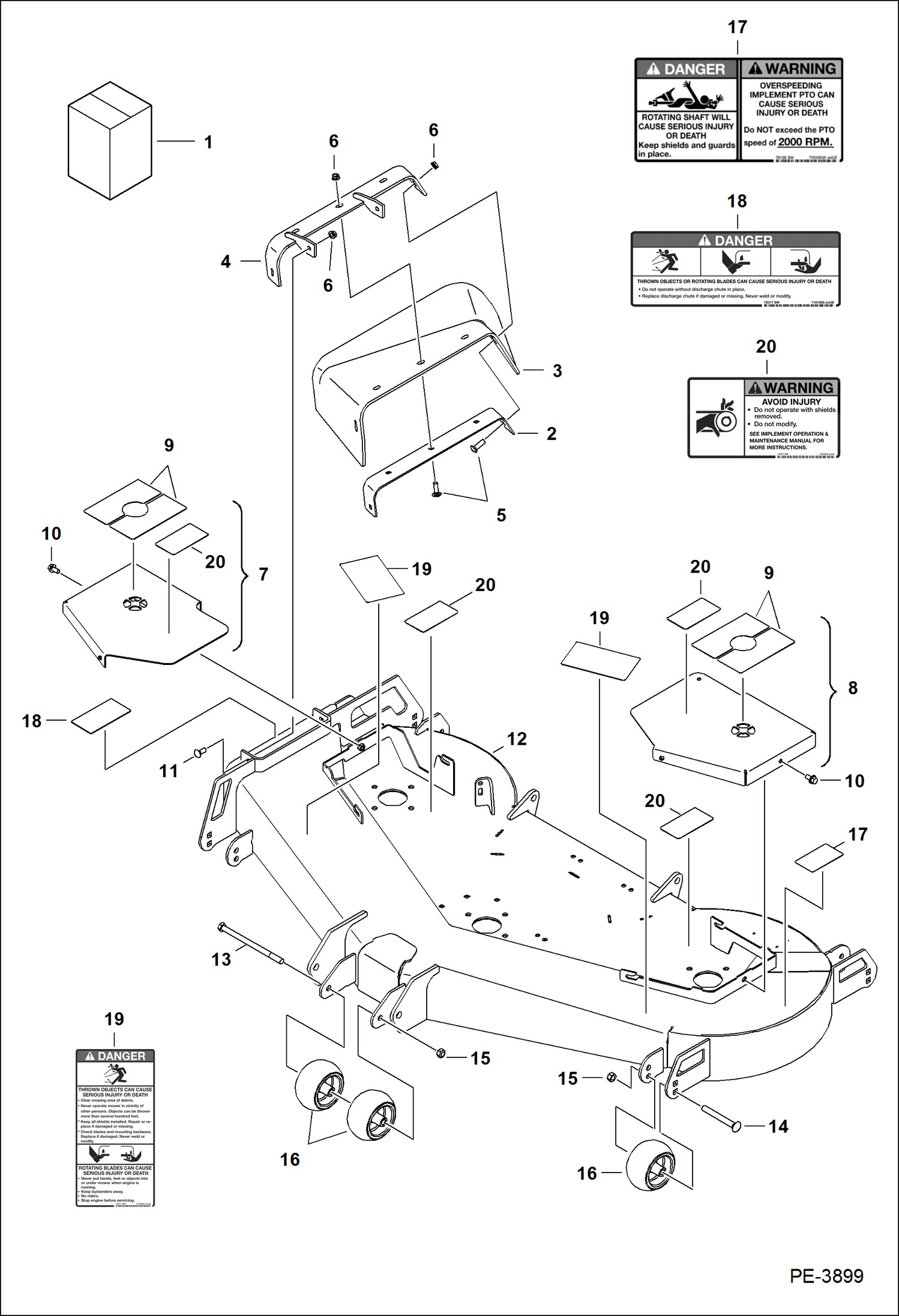

Запчасти Bobcat MOWER MOWER (Shields & Decals) (MM66 AB4C) Компактные тракторы

1

MOWER SALES #7148766 - mid-mount - 66''

2

7148686

BRACKET, DISCHARGE

3

7236064

COVER, DISCHARGE Was 7148688 - A

4

7148692

MOUNT, DISCHARGE

5

10C620

BOLT

6

57D6

NUT 5

7

7148778

SHIELD, ASSY RH - W/Ref. 9 & 20

8

7148779

SHIELD, ASSY LH - W/Ref. 9 & 20

9

7148640

TREAD, SAFETY

10

31C612

BOLT

11

37C616

BOLT

12

7148700

FRAME, MAIN ASSY

13

17C8128

BOLT

14

37C872

SCREW

15

85D5

NUT 5

16

7148738

WHEEL, MOWER

17

7161603

DECAL, SPEED PTO

18

7161605

DECAL, DANGER

19

7161602

DECAL, DANGER

20

7161604

DECAL, WARNING
