PLANER (Cylinder) (Standard Flow Planer) (178100101 & Above)

Запчасти Bobcat PLANERS PLANER (Cylinder) (Standard Flow Planer) (178100101 & Above) Loader

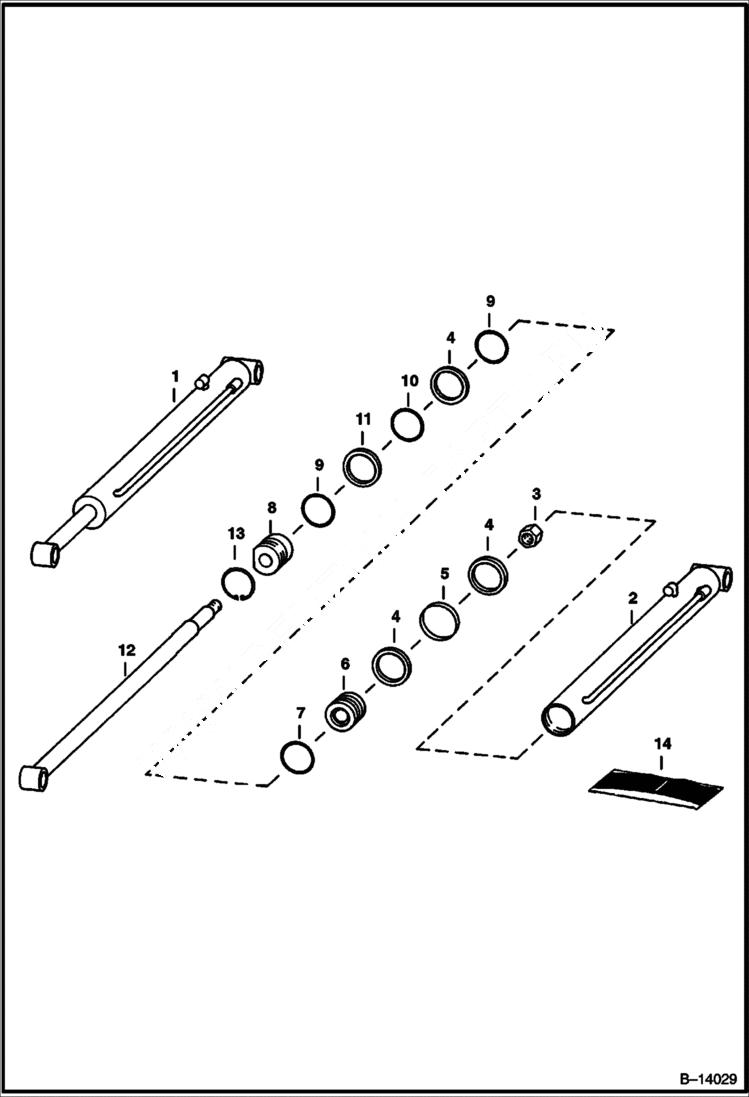

Схема запчастей Bobcat PLANERS - PLANER (Cylinder) (Standard Flow Planer) (178100101 & Above) Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6664253

CYLINDER W/Ref. 2 - 13

2

6664327

CASE

3

6673617

NUT Was 6664323 - A

4

BACKUP RING NSS

5

DUST SEAL NSS

6

6664325

PISTON

7

O-RING NSS

8

6664324

HEAD

9

O-RING NSS

10

O-RING NSS

11

BACKUP RING NSS

12

6664326

ROD

13

6653758

SNAP RING

14

6664328

SEAL KIT W/Ref. 4, 5 & 9 - 11
