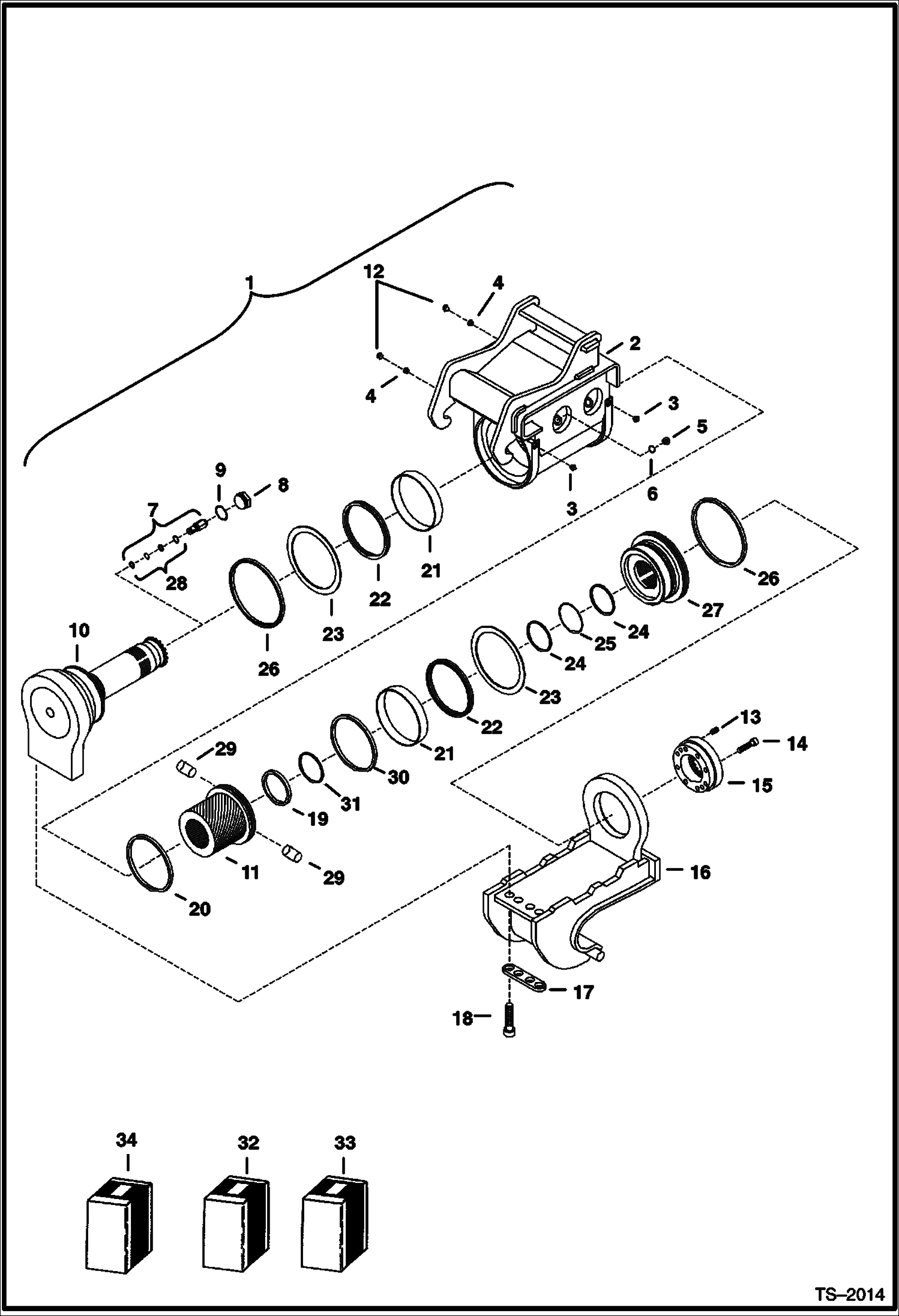

Запчасти Bobcat POWER-TILT POWER-TILT PTX-4 (335,337,341,435) Экскаваторы

1

6674582

ACTUATOR REF. 1-15 & 17-26

2

HOUSING NLA - Was 6675402 - A

3

10H25

FITTING, GREASE 5

4

6675851

GREASE RELIEF

5

90KV5

PLUG

6

95K6

O'RING

7

6675399

RELIEF VALVE

8

6675852

PLUG

9

95K20

O-RING

10

6675400

SHAFT

11

6675403

PISTON

12

6675854

COVER grease relief

13

6675856

SCREW

14

BOLT

15

6675398

LOCK RING

16

6717432

FRAME lower

17

6675220

WASHER

18

3GM2060

BOLT

19

SEAL NSS

20

SEAL NSS

21

BEARING NSS - order Ref. 31

22

BEARING NSS

23

SEAL NSS - order Ref. 31

24

WASHER NSS

25

O-RING NSS

26

O-RING NSS

27

6675397

END CAP

28

6675903

SEAL KIT relief valve

29

DOWEL

30

WIRE RING

31

BEARING NSS - rod

32

6675395

BEARING KIT

33

6675401

HARDWARE KIT

34

6675396

SEAL KIT
