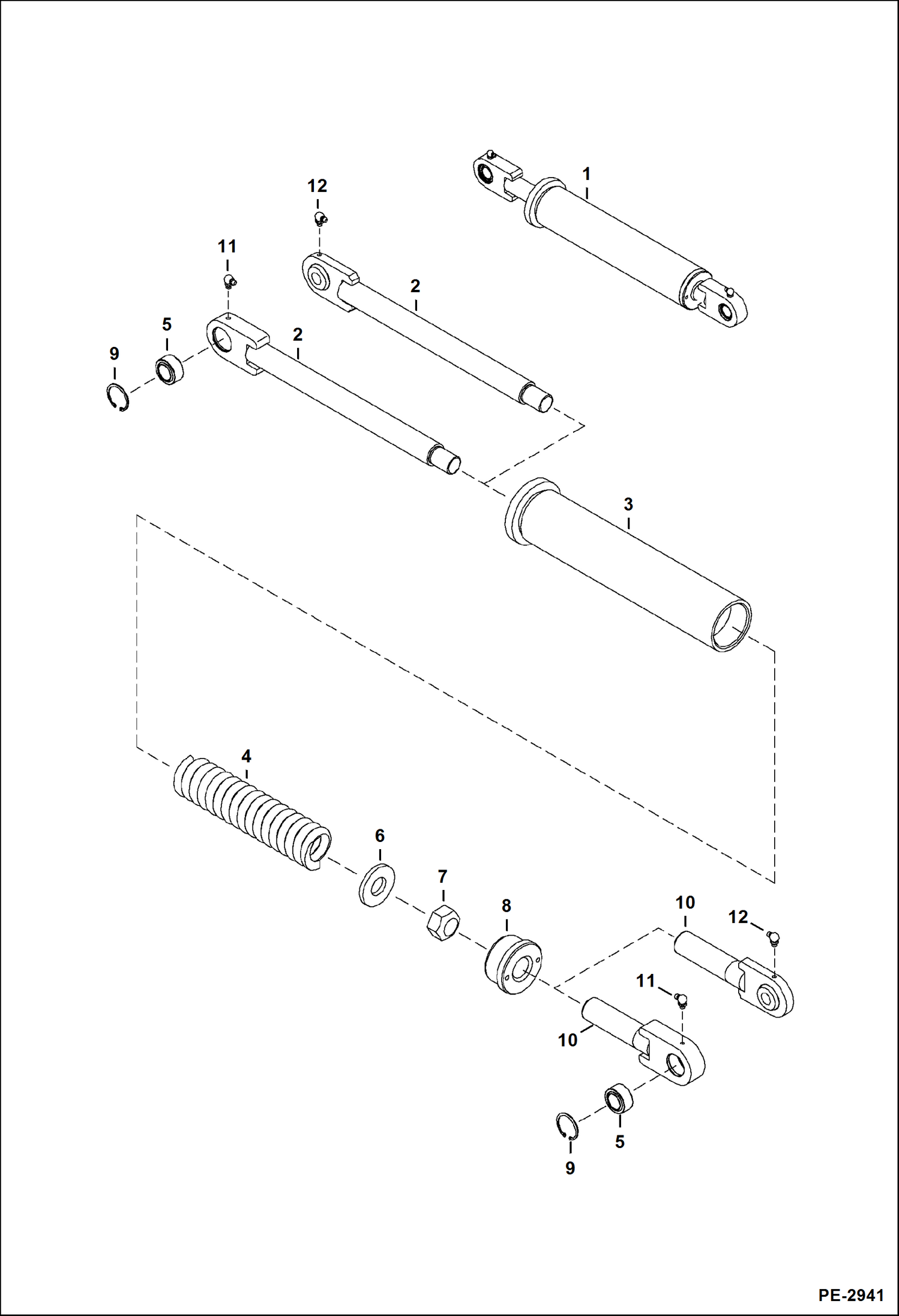

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (Link Assembly) (60 A019, A01A) (72 A008, A01B, A01C) Loader

1

LINK ASSY NLA - Order 7134582 link assy - W/Ref 2-10 - W/replaceable bearing & snap ring in rod ends - Was 7136774 - A

1

7134582

LINK ASSY W/Ref 2-10 - With non-replaceable bearing in rod ends

2

ROD ASSY NLA - With Ref 5, 9 & 11 - Order 7134193 - Is interchangeable with 7134193 rod assy - Was 7136476 - A

2

7134193

BALL JOINT With Ref 12 - Is interchangeable with 7136476 rod assy - Was 7134581 - A

3

7134579

TUBE Was 7108534 - A

4

6731286

SPRING

5

6691494

BEARING

6

7108540

WASHER

7

86D16

NUT

8

7108537

HEAD

9

23J23

SNAP RING

10

ROD ASSY NLA - With Ref 5, 9 & 11 - Order 7134190 - Is interchangeable with 7134190 rod assy - Was 7136478 - A

10

7134190

BALL JOINT W/Ref 12 - Is interchangeable with 7136478 rod assy - Was 7134580 - A

11

12H25

FITTING

12

3HM6

GREASE ZERK
