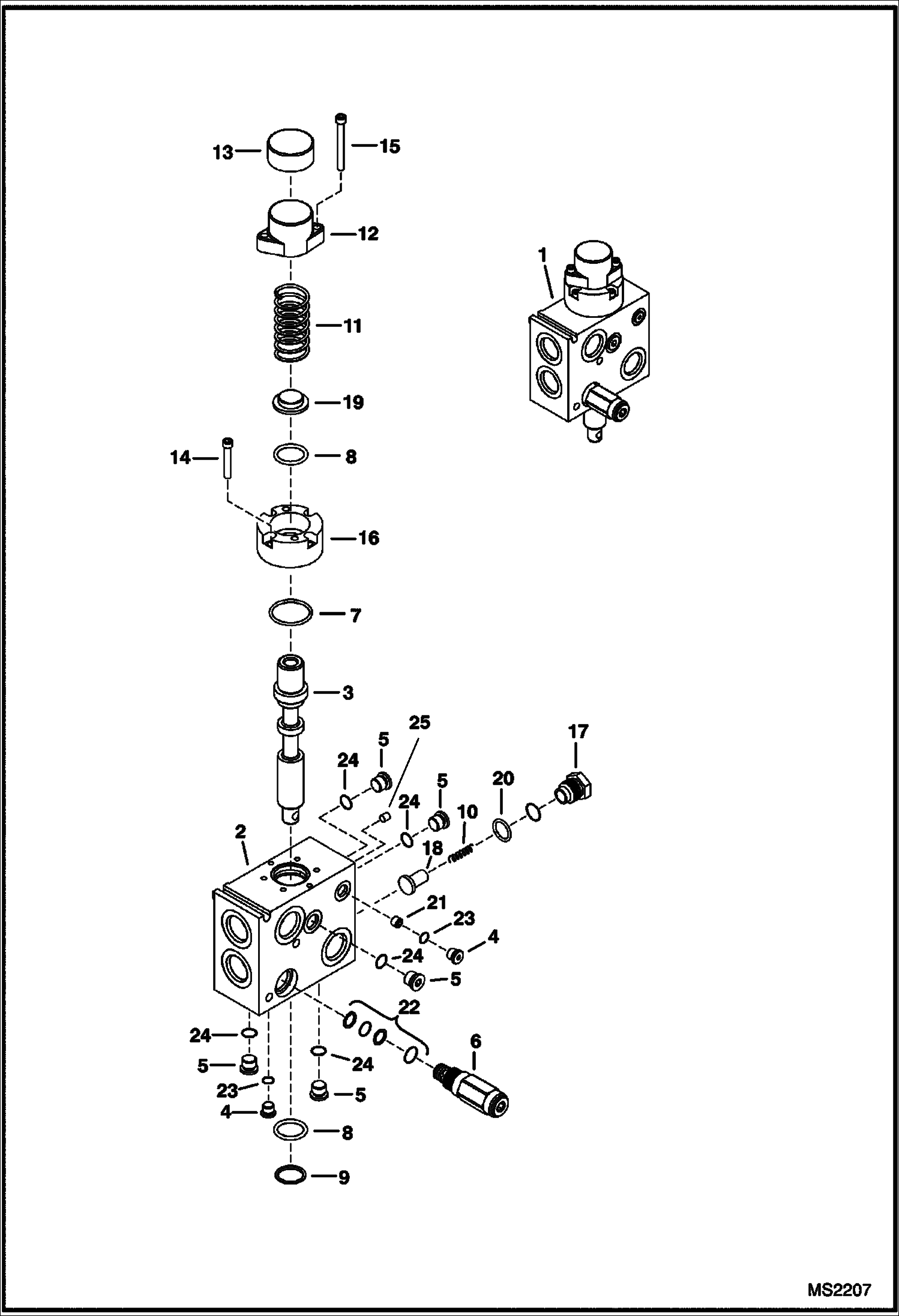

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (Shutoff Valve) (High Flow) (72 A01C) Loader

1

6688659

VALVE For 72X High Flow

2

BLOCK NSS - Order Ref 1

3

6690298

SPOOL

4

6665719

PLUG W/Ref. 23

5

6669620

PLUG W/Ref. 24

6

6673219

RELIEF VALVE 2500 psi - W/Ref. 22

7

6690371

O-RING

8

6690299

O-RING

9

6690300

SEAL rod wiper

10

6690302

SPRING

11

6690303

SPRING Was 6690302 - B,D

12

6690304

COVER

13

6690305

CAP

14

6690306

BOLT

15

6690307

BOLT

16

6690308

CAP

17

6690309

CHECK VALVE

18

6690310

POPPET

19

6690311

GUIDE

20

6690312

O-RING

21

6675959

ORIFICE

22

6673213

KIT, SEAL Was 6664032 - A

23

O RING 10 NSS - Order Ref. 4 - Was 79K4 - B,D

24

O RING 10 NSS - Order Ref. 5 - Was 79K6 - B,D

25

PLUG NSS - expander
