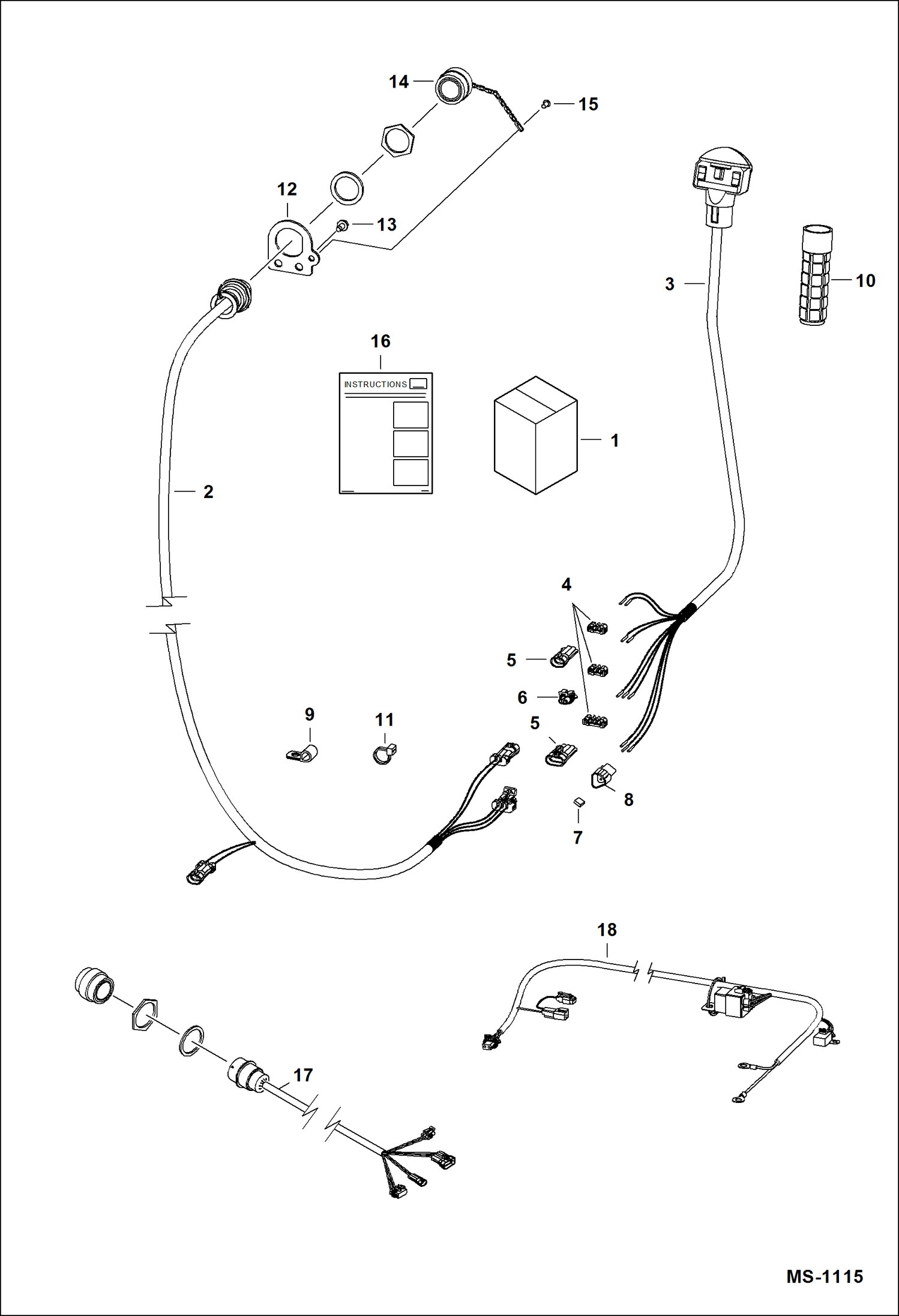

Запчасти Bobcat SNOWBLOWER 1412 SNOWBLOWER (Attachment Control Kit) (463 & 553) (7157) Loader

1

6729313

KIT attach control - Ref. 2-16 - see note on Ref. 18

2

6727870

HARNESS mounts on loader arm - 14-pin

3

6680412

HANDLE ASSY L.H. - Also Order Ref. 4, 5 & 6-8 Was 6707976 - A

4

6641180

LOCK Use W/ 2-pin connector

4

6640700

LOCK 3-pin

5

6641179

CONNECTOR 2-pin

5

6640699

CONNECTOR 3-pin

6

6641178

CONNECTOR 2-pin

7

6664800

LOCK 3-pin triangle

8

6664599

CONNECTOR 3-pin triangle

9

30H27

CLAMP

10

6702621

GRIP

11

6624289

STRAP, TIE

12

6714999

MOUNT

13

84G3112

BOLT 5

14

6664035

CAP

15

6704892

RIVET

16

6901273

INSTRUCTIONS

17

6728614

HARNESS 14-pin - not in kit - mounts on 1412 snowblower - For std controls only

17

7237140

HARNESS 14-pin - not in kit - mounts on 1412 snowblower - For SJC & std controls

18

6736214

HARNESS accessory - not in kit - used when attachment control kit is installed on a loader with a heater kit
