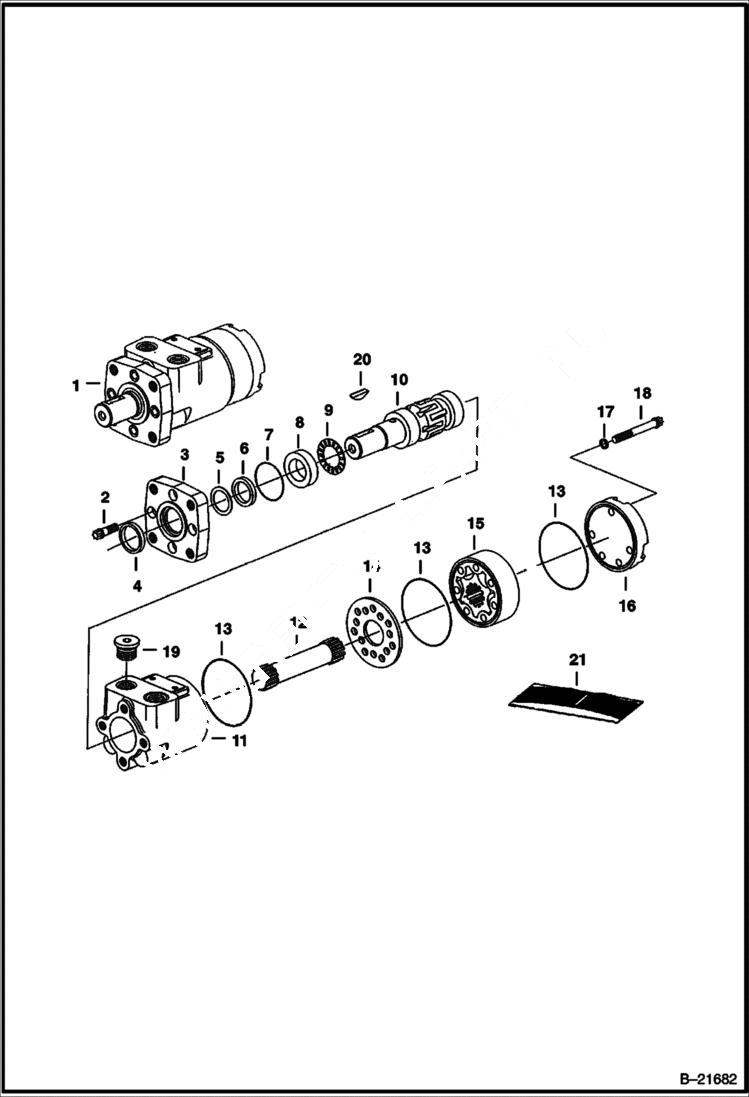

Запчасти Bobcat SNOWBLOWER SB200, SB240 & SBX240 SNOWBLOWER (Chute Rotator Motor) Loader

1

MOTOR See Illustration SB200, SB240 & SBX240 SNOWBLOWER/ NA2594 NLA - Chute - W/Ref. 2 - 20 - Eaton 130-1005-003 - Order 7188541 Motor - Was 6907666 - A

2

6665325

SCREW

3

6653266

FLANGE mounting

4

6634895

SEAL

5

6651241

WASHER backup

6

6651240

SEAL

7

25K30124

O RING 10

8

7019134

CUP, BEARING Was 6513279 - A

9

6513280

BEARING

10

6634900

SHAFT

11

6665326

HOUSING

12

6519146

SHAFT

13

6665328

SEAL

14

6635659

SPACER PLATE

15

6682550

GEROTER

16

6665330

END CAP

17

1992104

PLUG

18

6668823

BOLT

19

47K7

PLUG W/O-ring

20

6634899

KEY

21

6653269

SEAL KIT W/Ref. 4 - 7 & 13
