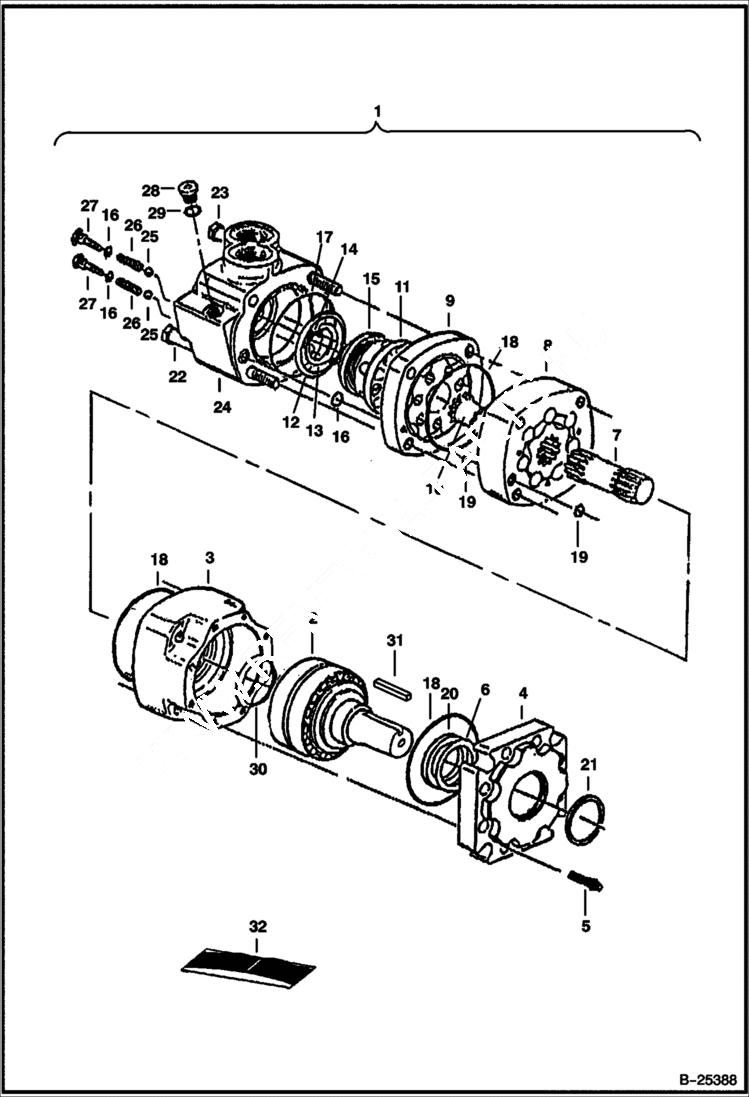

Запчасти Bobcat SNOWBLOWER SBX240 SNOWBLOWER (Auger Motor) (72 A00F) (84 7136) Loader

1

6687253

MOTOR Ref. 2-31

2

6678243

SHAFT

3

6666936

HOUSING

4

6666937

FLANGE

5

6666938

BOLT

6

6666939

RING backup

7

6689393

DRIVE main

8

6689394

GEROLER

9

6513505

PLATE

10

6513506

DRIVE

11

6513507

VALVE

12

6513530

SEAL outer

13

6666941

SEAL inner

14

6190121

SPRING compression

15

6630042

PLATE

16

25K20010

O RING 10

17

6680170

O-RING

18

6666942

SEAL

19

6667332

SEAL

20

6666943

SEAL

21

6630796

SEAL

22

6669429

BOLT

23

6689395

BOLT

24

6666945

HOUSING

25

10J8

BALL

26

6190116

SPRING

27

1992107

PLUG check - W/Ref. 16

28

1992104

PLUG W/Ref. 29

29

6664822

O-RING

30

6513529

SEAL

31

6678247

KEY

32

6666926

SEAL KIT rear - W/Ref. 12, 13, 16-19 & 29

32

6666928

KIT, SEAL shaft - W/Ref. 6, 18, 20, 21 & 30
